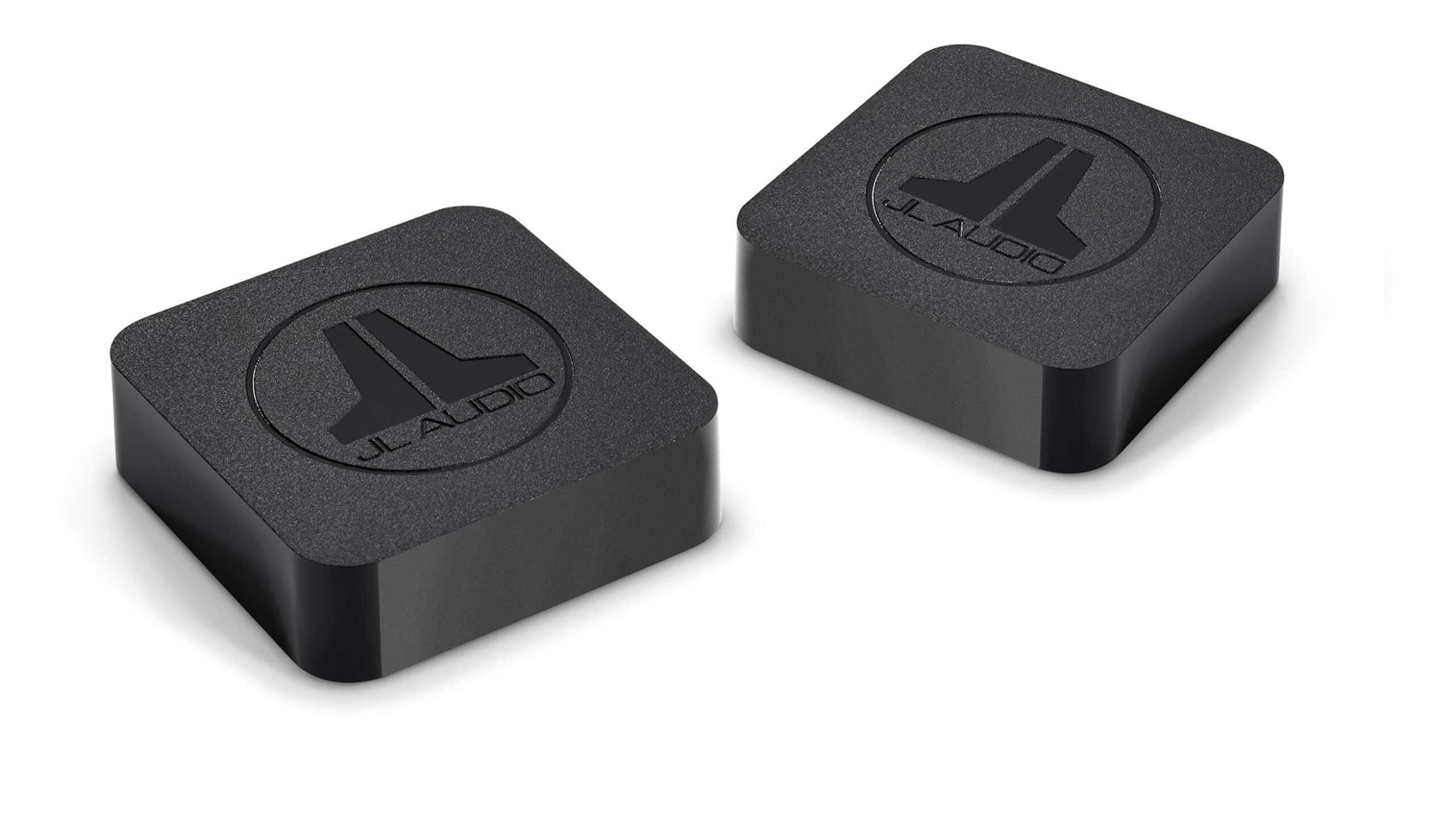

JL Audio JLink TRX
Wireless, High-Fidelity Audio Transmitter & Receiver Kit
By broadcasting at an ultra-high frequency of 2.4 GHz, the JLINK™ TRX lets you connect any two line-level audio devices together, without the use of RCA signal cables to connect in between. Now you can send crystal clear, stereo sound from a source unit to a receiver, preamp or powered loudspeakers, wirelessly, up to 100 feet away (30 meters) without needing to route or hide long expanses of signal cables. RCA-type input/output connectors are compatible with most audio equipment and a compact design makes it easy to hide the transmitter and receiver chassis out of sight. A JLINK™ port is also included on the receiver for direct connection with JLINK™ compatible JL Audio products.
Especially useful in system designs that include remote source applications, lengthy signal cable runs or demanding installations due to challenging architecture, the JLINK™ TRX system gives you the freedom to position a source unit or outlying amplifier/powered loudspeakers (subwoofer or full-range) almost anywhere you would like.
- Outstanding fidelity in subwoofer and full-range applications
- Bit-Perfect Digital PCM Stereo Wireless Technology (16 bit / 48 kHz)

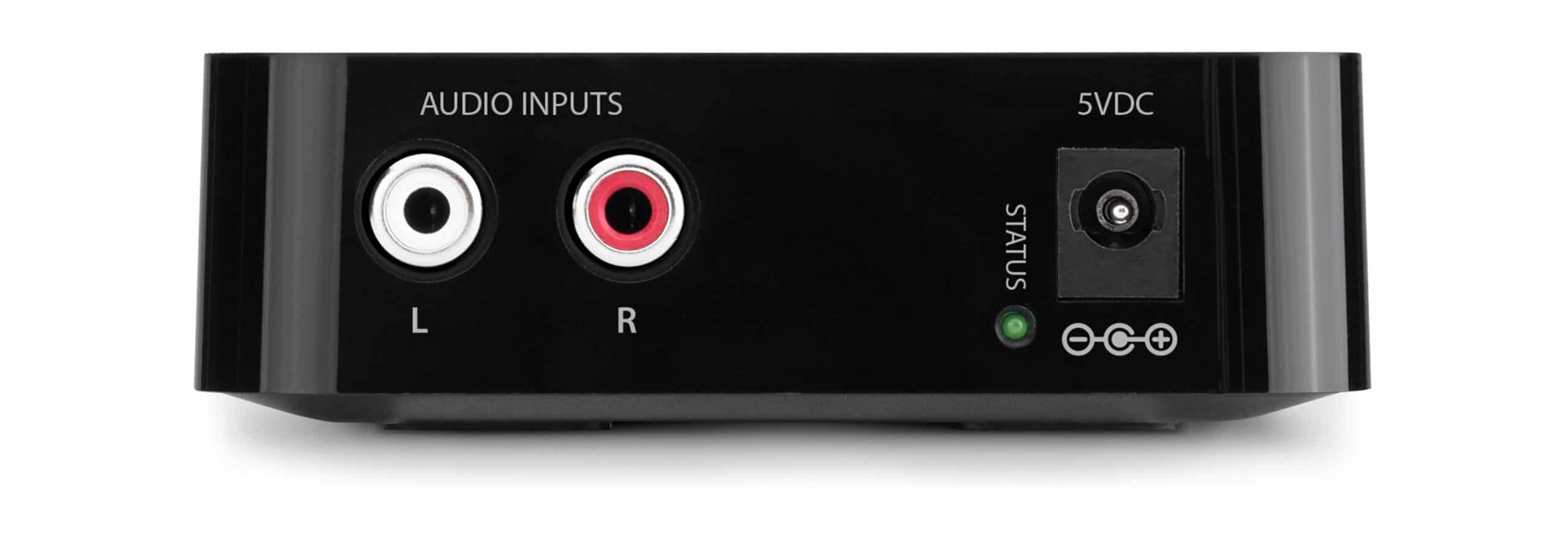

- RCA-type input/output connectors are compatible with most audio equipment
- Up to 3 JLINK™ transmitters can be used concurrently (3 channels to choose from)
- Up to 4 JLINK™ receivers (sold separately) can be paired to each JLINK™ transmitter

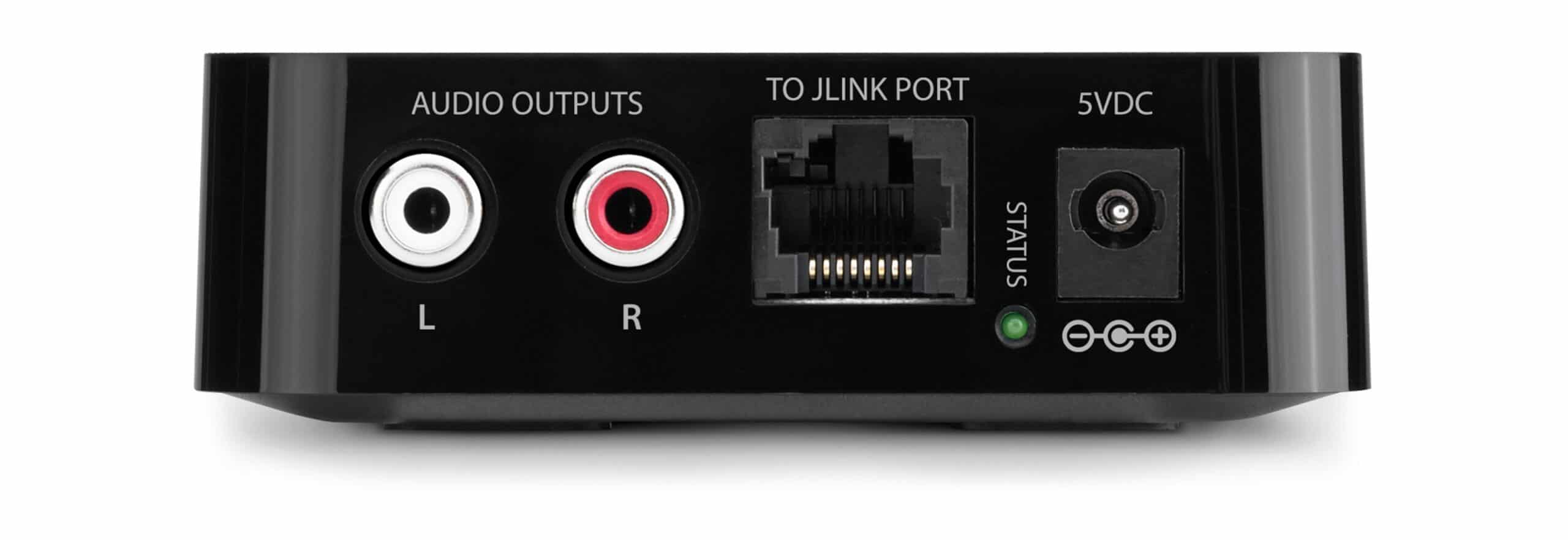

- Receiver includes JLINK™ port for use with compatible JL Audio products.
S/N Ratio | 80 dB @ 1 kHz, 500 mV |
THD+N | 0.02% @ 1 kHz, 500 mV |
Crosstalk | >75 dB @ 1 kHz, 500 mV |
Frequency Response | 16 Hz – 22 kHz (+0, -1dB) |
Wireless Range | 100 feet / 30 meters (typical) |
Wireless Channels | 3 available, selectable via switch |
Latency | 14 mS |
Operating Temperature | 32 to 104 °F / 0 to 40 °C |
AC Power Adaptor | 1 A, 5 volts DC |
