PRIS:51 000 kr med media kort

JL Audio CR-1

CR-1 is built around two banks of precision Linkwitz-Riley low-pass and high-pass filters. Multiplying DACs with monolithic ratio matching are employed to adjust the analog circuit’s filter frequencies. This offers superior tracking behavior and far more precise left/right channel balance, compared to conventional approaches.

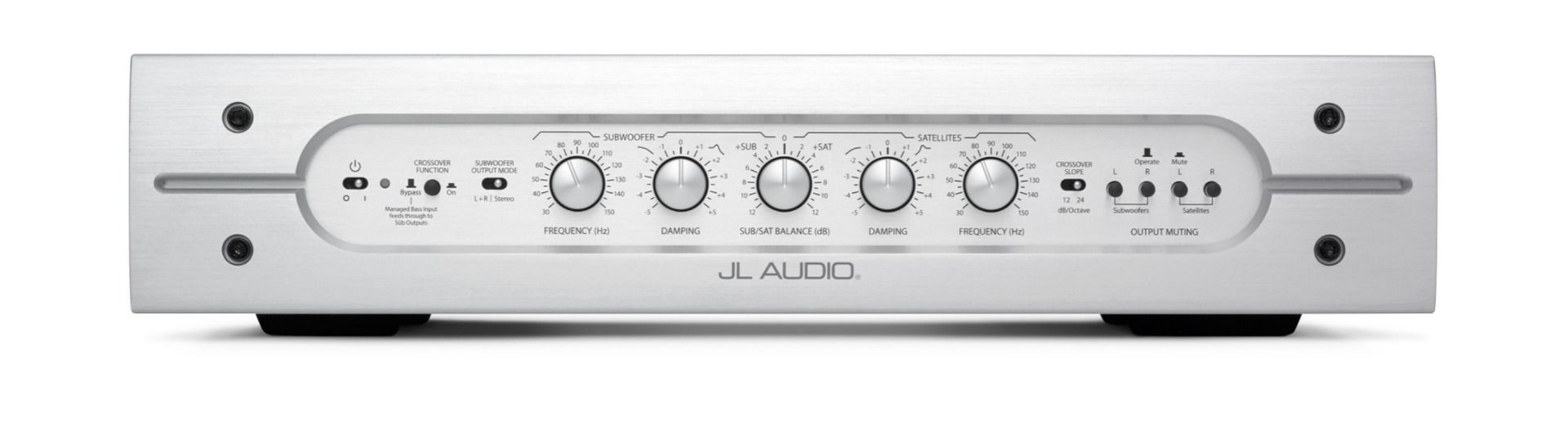

Another of CR-1’s unique and powerful features is a pair of rotary controls that control the damping of each filter bank. These damping controls dramatically improve the acoustic summing through the crossover region, by compensating for each speaker system’s frequency response. At the center of the front panel, a single intuitive, rotary control permits quick adjustment of the relative level between the subwoofer(s) and main speakers.

To minimize distortion and noise, CR-1 employs top-grade component parts in its all-analog audio circuitry: 1% precision resistors, JFET-input audio-grade op-amps, polypropylene film-and-foil capacitors and metallized-polypropylene film capacitors, to name just a few.

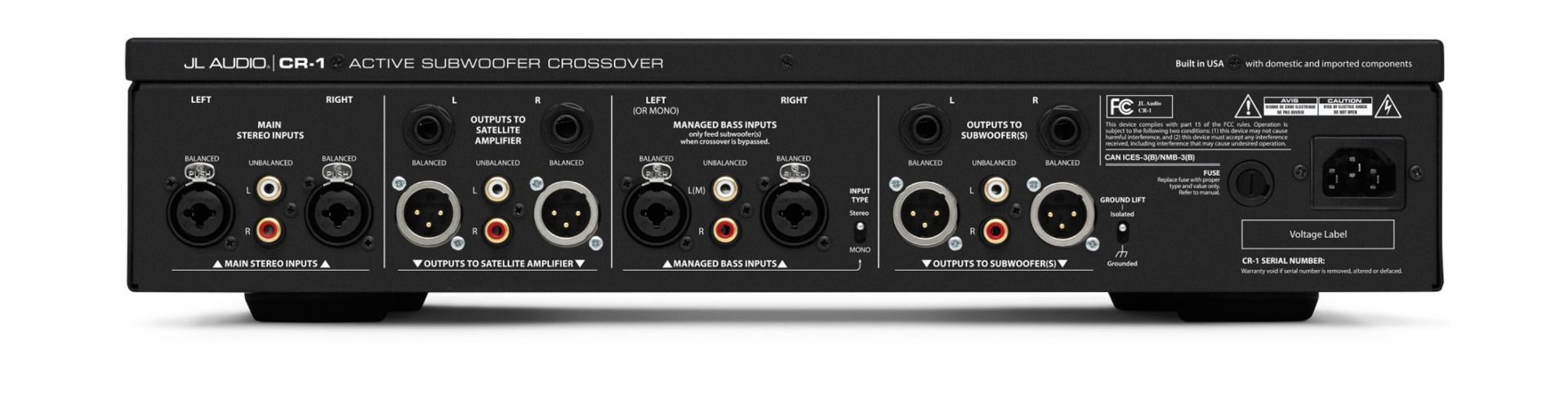

CR-1’s input-output design makes it equally adaptable to studio, mastering suite or audiophile two-channel playback environments. To accommodate dual-mode systems, we also include a bypass feature that engages a pass-through from a dedicated “Managed Bass Input” on the rear panel, to the CR-1’s subwoofer outputs. This makes it convenient to switch from two-channel to multi-channel mode.

Max. Input Voltage 8 Vrms (+18 dBv)
Input Impedance Unbalanced: 50 kΩ Balanced: 20 kΩ (10 kΩ per leg)
Max. Output Voltage 8 Vrms (+18 dBv)
Output Impedance Unbalanced: 150 Ω Balanced: 300 Ω (150 Ω per leg)
THD+N < 0.002% at 8 Vrms/10 kΩ20 Hz – 20 kHz, 90 kHz bandwidth
Channel Separation >80 dB at 1 kHz
Low Pass Frequency Response +0, -1 dB from 5 Hz to 1/4 of filter frequency
High Pass Frequency Response +0, -1 dB from 4x filter frequency to 80 kHz
Power Consumption 30 Watts (typical, with or without signal)
Mains Voltage (Frequency) 120V (60 Hz) or 230/240V (50 Hz or 60 Hz), factory-set for destination country
