The MiniSub has always been at the heart of ISOL-8, providing class leading performance at an affordable price. Improving the MiniSub was a real challenge, thousands of satisfied MiniSub owners across the world proved that it was going to be a difficult act to follow. Through careful development and adaptation we have managed to incorporate many of the innovative technologies found in the highly regarded flagship ISOL-8 SubStations, taking the all new MiniSub Wave and MiniSub Axis a substantial step forward whilst remaining outstanding value for money.

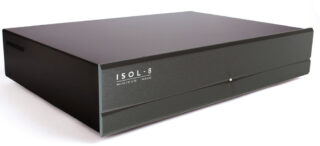

MiniSub Wave
Both the MiniSub Wave and MiniSub Axis share the same fundamental layout and filter complement. The differing technical requirements of low and high current loads are reflected in the separated filter topology found in both versions.

For low current loads, such as source components, each outlet has a separate filter network. This is the feature that made the original MiniSub such a ground breaking product. It reduces system component cross contamination, stopping mains borne noise from one system component affecting others.

Unlike most other conditioners, which only deal with common mode noise, the low/med power outlets can suppress both common and differential mode noise, armed with a new Transmodal filter topology.

For more demanding loads, the separate high power section gets a new multistage filter using custom wound components. This cleans current hungry, noisy components like amplifiers much more effectively than before, without squashing dynamic performance.
Number of available outlets: 6 (4 low/med current. 2 high current)
Type of outlets available: 13A British chassis sockets
European Schuko sockets
15A US sockets
Standard Mains Inlet: 10A IEC fused at 10 Amps (cable not supplied)
Dimensions: 444 x 85 x 305mm (W x H x D) excluding connectors
Product Weight: 6.5Kg (MiniSub Wave)
6.7Kg (MiniSub Axis)
Construction: Steel chassis with black finish.
Silver Aluminium front panel (Black optional)
Mains Voltage: 230VAC version for 220-240VAC
117VAC version for 100-127VAC
Maximum Continuous Current: 6 Amps any one low/med power outlet
6 Amps across all low/med power outlets
10 Amps any one high power outlet
10 Amps across all high power outlets
