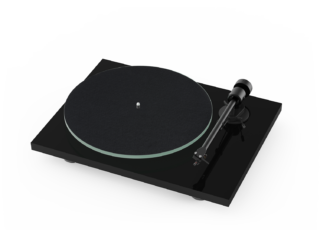

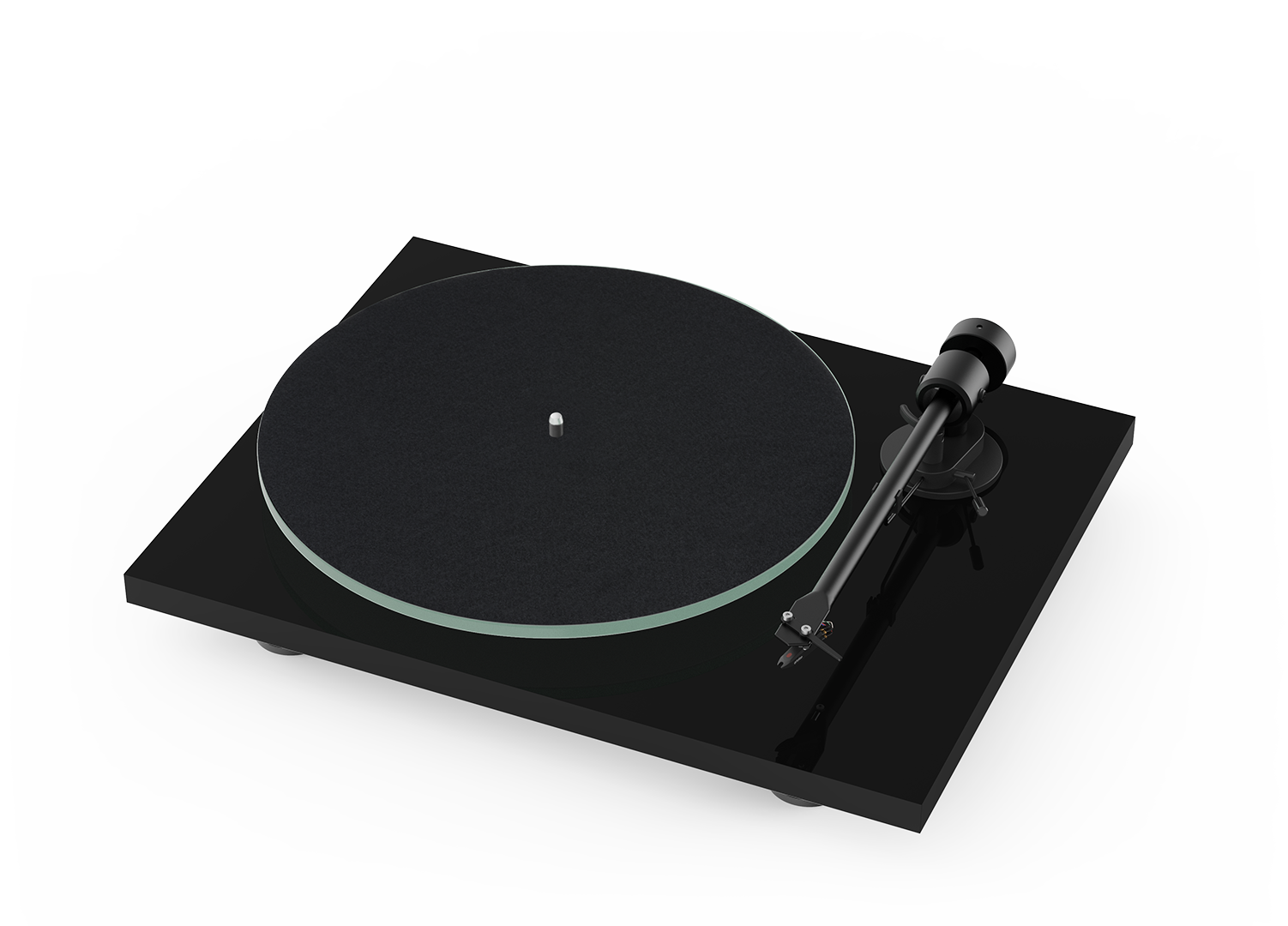

Pro-Ject T1 p.u. Ortofon OM 5e
Audiophile entry-level turntable
New generation turntables – Made in Europe

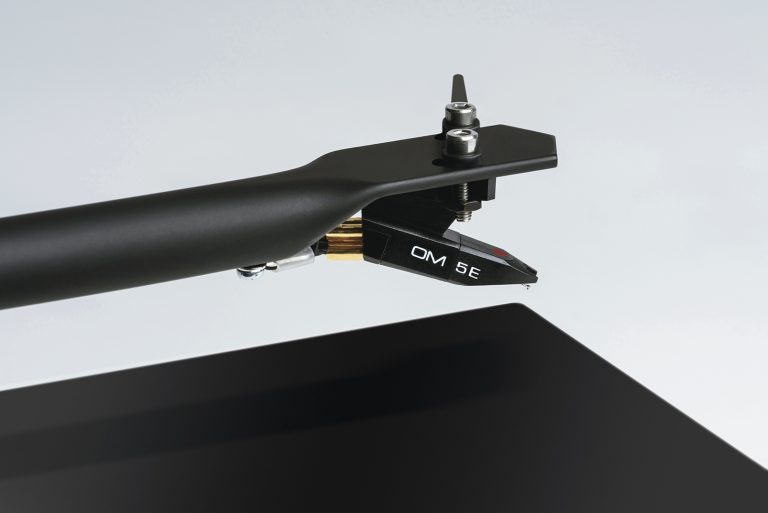

The stylish, CNC-milled chassis of the T1 contains no plastic parts and is made entirely without cavities, so that no unwanted vibrations can occur in the chassis. In keeping with this philosophy, the platter is made of solid glass. In contrast to plastic or light steel turntables, unwanted resonances are effectively suppressed. The turntable of the T1 is driven by a belt. This precisely transfers the driving force to the newly designed sub-plate, which in turn sits in the ultra-precise 0.001mm platter bearing with a hardened stainless steel shaft in a brass bush. The 8.6 “long tonearm consists of a single piece of aluminum and is equipped with low-friction bearings. The pre-assembled Ortofon OM 5E quality cartridge has already been adjusted and can therefore be used immediately. The scope of delivery also includes outstandingly shielded, quasi-symmetrical, low-capacitance Pro-Ject Phono cables.
Scope of delivery:
- T1 with Ortofon OM 5E cartridge
- Directly soldered Connect it E Phono cable
- Felt mat
- Dust cover
- Adapter for 7 “singles
- power adapter
- Tonearm scale, Allen key
Features
- Precise belt drive
- Resonating subplate design
- Heavy, 8mm thick, resonance-free platter made of glass
- High-precision CNC machined full housing: No voids & no plastic
- Ortofon OM 5E MM quality pickups
- Light 8.6 “aluminum tonearm
- Low-friction, vibration-free tonearm bearing
- One-piece tonearm tube & headshell design
- Excellent shielded, quasi-symmetrical, low-capacitance Pro-Ject Phono cable
- Vibration-absorbing feet
- Elegant dust cover with adjustable hinges
- Available in high-gloss black, matt white & walnut
- European handicraft
Technical specifications
Speeds | 33, 45 (manual switching) |
Drive principle | Belt drive |
Speed deviation | 33: 0.7% 45: 0.6% |
Speed fluctuation | 33: 0.25% 45: 0.23% |
Platter | Heavy, 8mm thick platter made of glass with felt mat |
Turntable bearing | Stainless steel / brass |
Rumble to noise ratio | 65dB |
Tonearm | 8.6 ”aluminum |
Effective tonearm length | 218.5 mm |
Overhang | 22.0 mm |
Effective tonearm mass | 8.0 g |
Counterweight for masses | 5 – 10g (pre-installed) |
Tracking force adjustment range | 0 – 50mN (17.5 mN preset) |
Included accessories | Dust cover, felt mat |
Integrated power supply | 230V 50Hz (US: 110V 60Hz) |
Power consumption | 3 watts max |
Weight | 3.8 kg |
Dimensions | 415x100x335 mm (WxHxD) |
