PRIS:315 000 kr med media kort

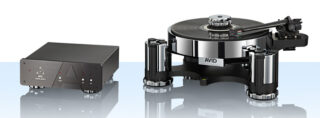

Avid Acutus Ref SP Chrome

Denna skivspelare är förberedd för alla SME tonarmar som : SME M2 – 9 Pris: 16500:- SME 309 pris : 19500:- SME IV pris : 29500:- SME IV black  pris : 34000:- SME V pris  : 44000:-. Du finner alla SMEarmarna under  Tonarmar.



Acutus turntable is radically different from current design theories. Designed from a clean sheet, leaving nothing unexplored or unresolved. Setting a standard of musical reproduction others aspire to achieve. In brief, this is a belt drive, sprung subchassis design and this is where similarity with other designs stops. On first appearance you can see there is something different and you would be right.

Vibration caused by the stylus during playback is transmitted to the subchassis directly through our newly revised unique single point bearing and not absorbed into the platter. This is achieved using a unique matting material and clamping system. External vibrations are isolated by a unique variable frequency suspension system, conveniently adjustable from above.

A purpose designed power supply, incorporating our latest DSP signal generation makes for accurate speed settings. This coupled to a unique hand made motor, 10 times more powerful than normally used, drives a massive 10Kg platter with our new twin belt drive system making for excellent speed stability and sonic pictures of sound.

Stunningly finished in Polished Chrome, this product is the natural choice of equipment for those who demand the best.

Drive

: Twin Belt drive

Speeds

: 33.3 and 45.0 RPM

Platter mass

: 10.0 Kg

Bearing

: Inverted stainless steel

Thrust point

: Tungsten carbide/Sapphire

Suspension

: 3 point, springs in vertical, O-rings in lateral frequency

: vertical 2.5 Hz (variable), lateral 4.5 Hz

Tonearms

: Std. cut for SME (adapters to order)

Motor

: Hand built 24v 140mNm ac synchronous

Power supply

: DSP Vari-SPeed control unit

Voltage input

: 100-240vac 50/60Hz 20 watts max. (depending on region)

Dimensions

: Turntable (overall) 460 x 400 x 210mm (WxDxH)

Dimensions

: Turntable (footprint) 410 x 360mm (WxD)

: P.S.U. 250 x 215 x 95mm (WxDxH)

Net weight

: 19.0Kg (42lb) turntable only

: 3.5Kg (8lb) psu only

Packaging

: 550 x 500 x 550mm (WxDxH)

Shipping weight

: 30.0Kg (66lb)
