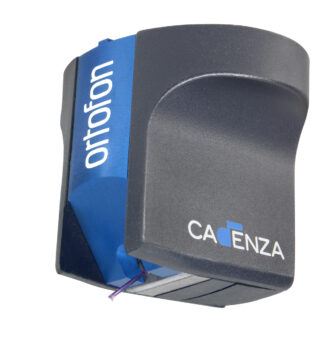

Ortofon Cadenza Blue

The Cadenza Blue model is using a Nude FG 70 stylus with a very thin ruby cantilever.
The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance.

The soundstage of Cadenza Blue is wide open and grandiose straight out of the box. Micro dynamic and ambience will be evident when listening to complex compositions. It reaches a very high degree of definition in the perspective, which is very present. It is true to the music with a tremendous clarity.

Technical Data
Output voltage at 1 kHz 5 cm/sec 0,5 mV
Channel balance < 1,2 dB
Channel separation at 1 kHz > 23 dB
Channel separation at 15 kHz > 15 dB
Frequency range at -3 dB 20 Hz – 50 kHz
Frequency response 20 Hz – 20 kHz +2/-1
Tracking ability at 315 Hz at recommended tracking force *) 80 μm
Compliance, dynamic, lateral 12 μm/mN
Stylus type Nude FG 70 on Ruby cantilever
Stylus tip radius r/R 6/70
Tracking force range 2,2-2,7 g (22-27 mN)
Tracking force recommended 2,5 g (25 mN)
Tracking angle 20º
Internal impedance, DC resistance 5 Ohm
Recommended load impedance 50-200 Ohm
Cartridge body material Stainless steel Aluminium
Cartridge colour Blue/Black
Cartridge weight 10,7 g
*) Typical value
