The DV XX-1 was the first cartridge to feature a “magnetic flux damper” (patent) and softened magnetism” (patent) processes that reject the magnetic fluctuation that is detrimental to a moving coil cartridges performance.

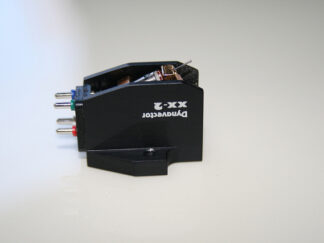

The The DV XX-2 MKII retains the benefit of the flux damper but features the Alinco-5 magnet and the similar rigid construction to the Te Kaitora Rua. Alnico magnets exhibit high magnetic flux density combining with a low coercive therefore magnetic resistance is lower than other magnetic types such as rare earth and ferrite, providing the exceptional stability of the XX-2 MKII output voltage. There is also the additional advantage of low magnetic and electrical resistance contributing to a discernable improvement in sound quality.

The XX-2MKII also exhibits deep powerful bass, treble is both clear and lively possessing none of the hardness found in many moving coil designs.

The XX-2MKII also features a 6 mm solid boron cantilever fitted with a Pathfinder Line contact stylus. PCOCC (pure copper ohno continuous casting process) copper wire is used for the coil. The output voltage of 0.28mV is higher than that of the XX-2 and 6 ohms impedance are suited to most moving coil phono stages.

For ridgity of construction the XX-2 MKII cartridge body is machined from 7075 aluminium the hardest available. However, having only a total weight of only 8.9 grams it is suitable for a variety of popular tonearms.

Type

Low output moving coil cartridge with Alnico magnet and Flux damper

Output Voltage

0.28mV (at 1KHz, 5cm/sec.)

Channel Separation

30 dB (at 1KHz)

Channel balance

1.0 dB (at 1KHz)

Frequency response

20 – 20,000Hz (± 1dB)

Compliance

10 x 10-6 cm/dyn

Tracking force

1.8 – 2.2 grams

Impedance

R=6 ohms

Recommended load
resistance

> 30 ohms

Cantilever

6mm length 0.3 mm dia. solid boron

Stylus

PF Line contact shape, stylus radius: 7 x 30 micron

Weight

8.9 grams.
