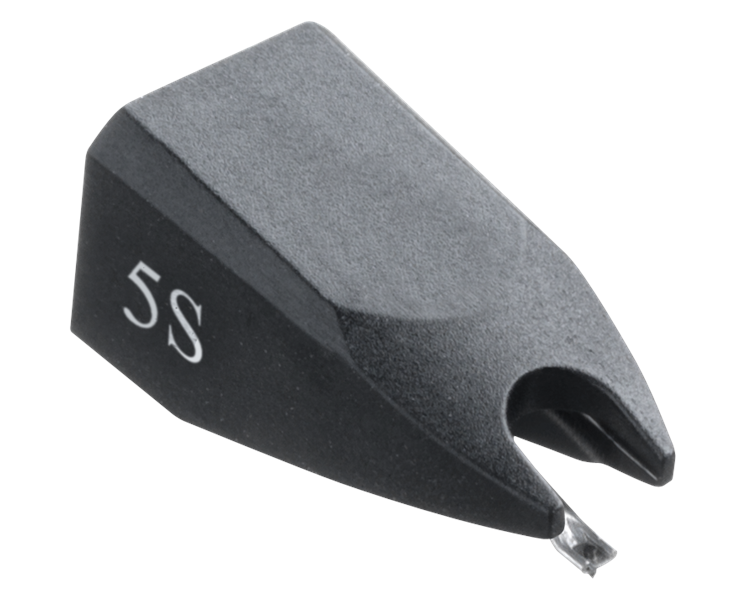

Stylus 5S technical specifications

Frequency range at -3dB – 20-20.000 Hz
Frequency response – 20-22.000 Hz
Tracking ability at 315Hz at recommended tracking force *) – 60 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Spherical
Stylus tip radius – R 18 µm

*) Typical value

Tracking force range – 1.5-2.0 g (15-20 mN)
Tracking force, recommended – 1.75 g (17,5 mN)
Tracking angle – 20°
Stylus colour – Black
Recommended for OM 5S
