PRIS:7 000 kr med media kort

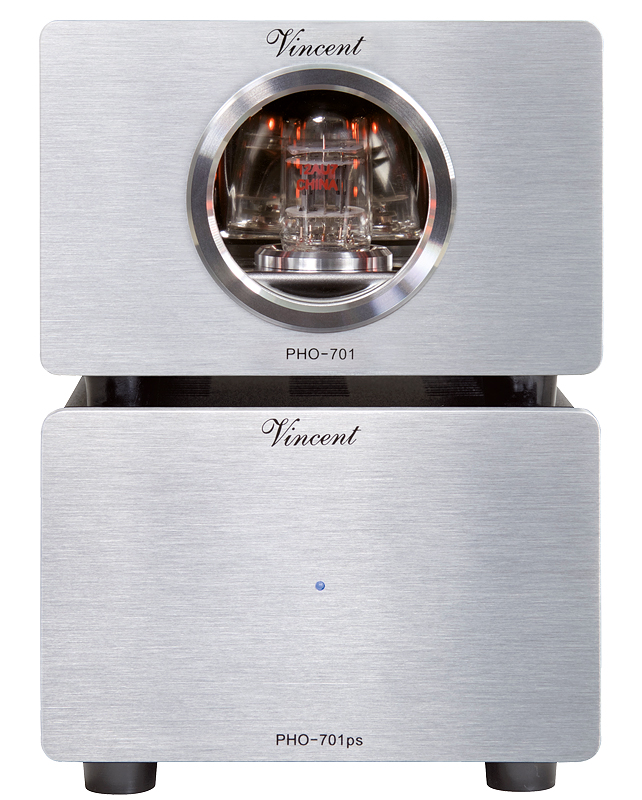

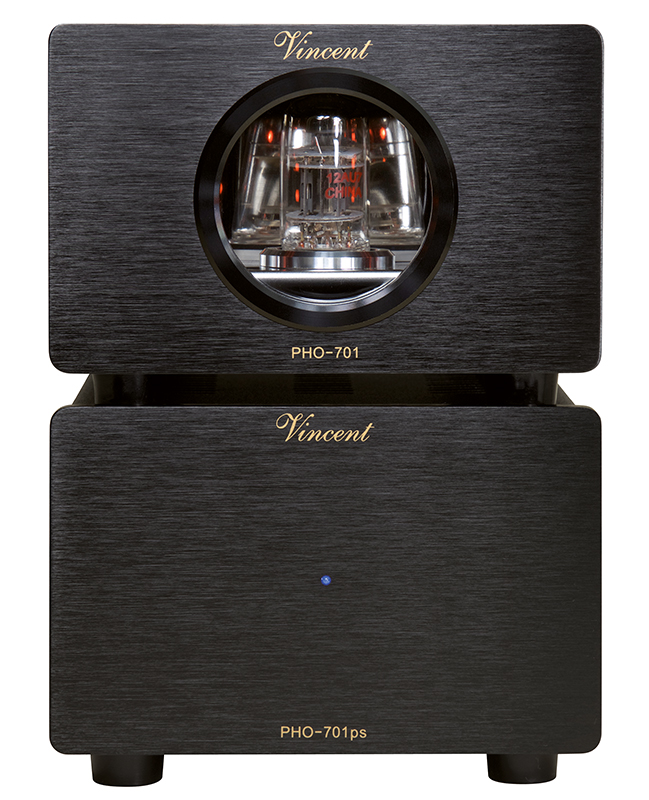

Vincent PHO 701 RIAA Steg

The consequent enhancement of our succesful tube phono preamplifier, the PHO-700, has now the possibility to make exact adjustments for the pick-up cartridge through DIP-switches. The result is a considerable increase of the sound quality and the fine resolution, because no compromise has to be done like on many other phono preamplifiers.
Additional we have added a USB port which gives you the possibilty digitize your Vinyl treasures (max. 24 Bit / 192 kHz).

Technical Specifications

  • Frequency Response: 10 Hz – 20 kHz
  • Harmonic Distortion: < 0.05 % (20 Hz – 20 kHz)
  • Input Sensitivity: MM: 58 mV, MC: 6.8 mV
  • Signal-Noise Ratio: MM: > 81 dB, MC: > 69 dB
  • Input Impedance: MM: 47 kOhm, MC: 99 – 1000 Ohm (adjustable)
  • Input Capacity: MM: 15 pF – 350 pF (adjustable), MC: 15 pF
  • Output Impedance: 250 Ohm
  • Amplification Factor: MM: 40 dB, MC: 60 dB
  • Max. Power Consumption: 15 Watt
  • Inputs: 1 x Stereo RCA

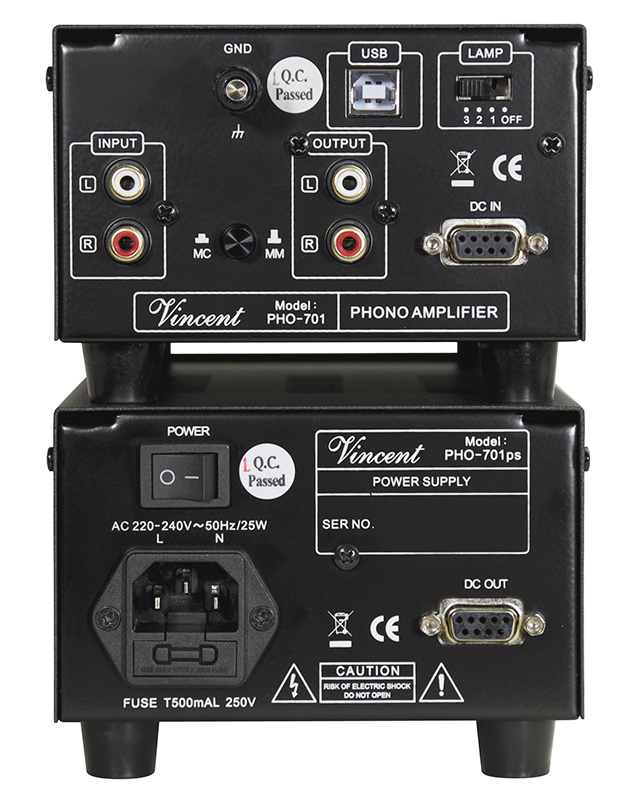

  • Outputs: 1 x Stereo RCA, USB (24 Bit / 192 kHz)
  • Tubes: 1 x 12AU7
  • Colour: Black / Silver
  • Weight: 2.2 kg
  • Dimensions (WxHxD): 130 x 95 x 225 mm (for power supply and PHO-701 each)
