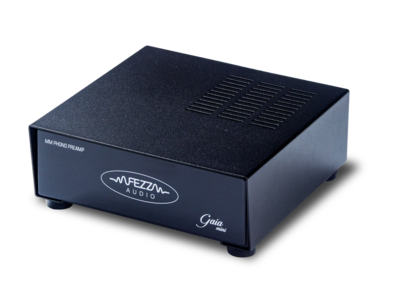

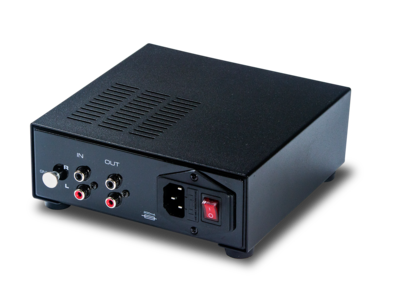

Fezz Audio Gaia Mini MM RIAA-Steg

High fidelity phono stage, designed to support MM and MC HO cartridges. The chassis dimesions has been reduced compared to the standard version of Fezz Audio Gaia. The high-quality components as the FET OPA 2132 Burr-Brown operational amplifier and Nichicon Fine Gold capacitors, guarantee excellent dynamics at level of more expensive constructions.

Cadridge type : MM/MC HO , RIAA curve EQ
Operation amplifier type: OPA 2132 Burr-Brown
AC Supply: Stabilized + EI standard power transformer
Gain : 53 dB
THD distortion (20Hz-20kHz) : < 0,008%
Crosstalk : >91dB
Signal/noise ratio MM: >90dB
Input impedance MM: 47kΩ
Power consumption 5W
Weight : 1,1 kg
Dimensions : 170x160x65mm
