1. Large 200VA custom made toroidal transformer for power supply
2. Multiple power supply capacitors in parallel for low ESR
3. All discrete transistor audio stages
4. High quality resistors & capacitors used in the signal path

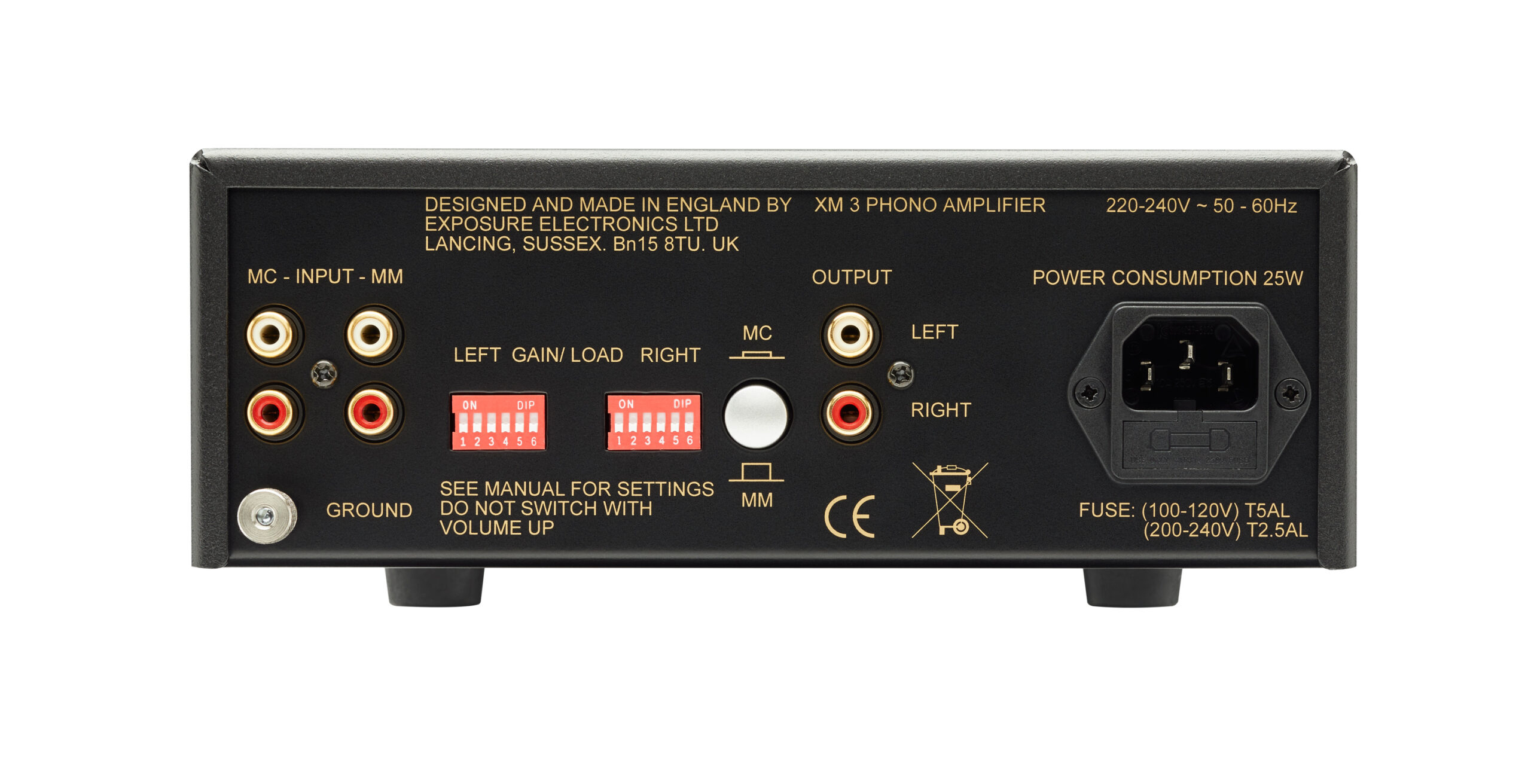

5. Separate MM & MC inputs selectable on the back panel
6. Adjustable loading & gain switches on the back panel
7. High quality all aluminium case work and extruded front panel
8. Three year guarantee

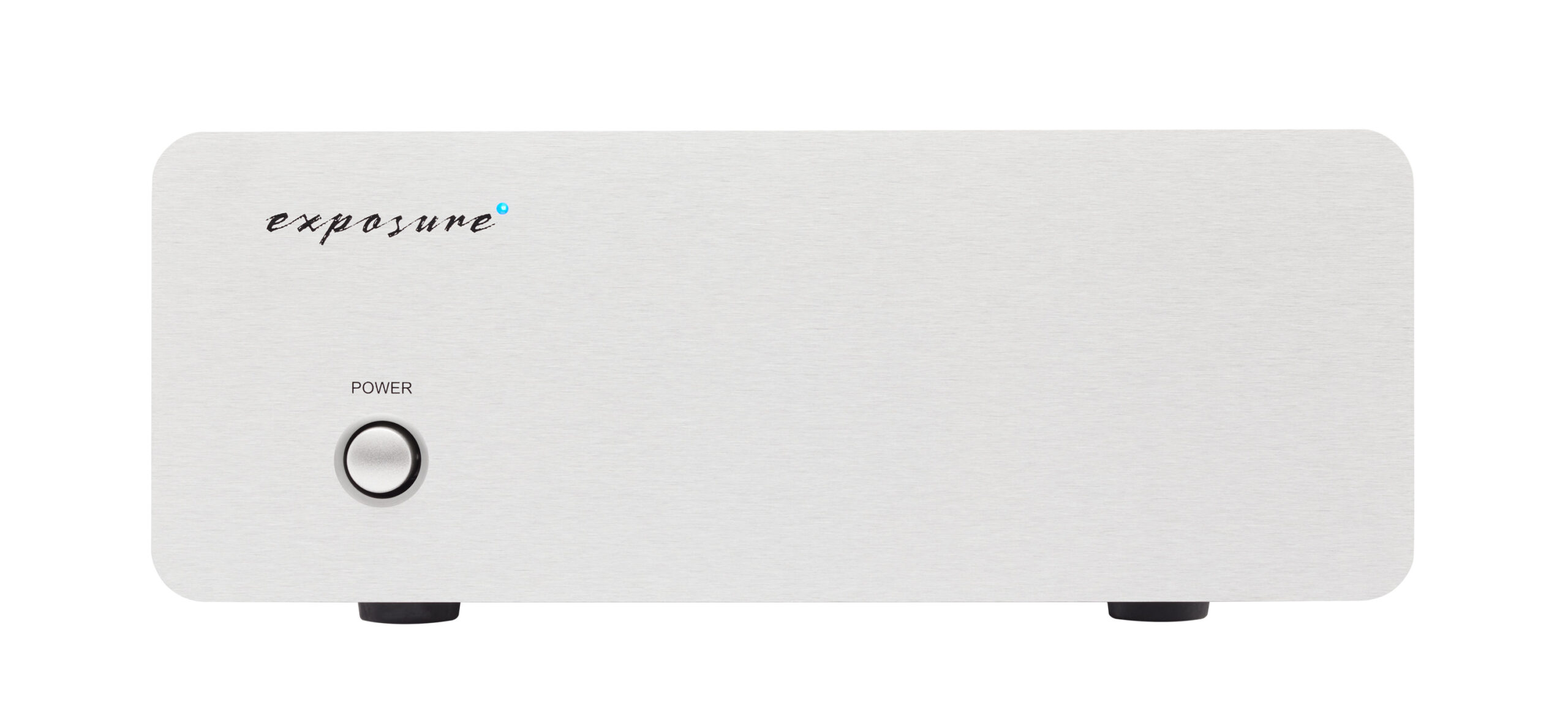

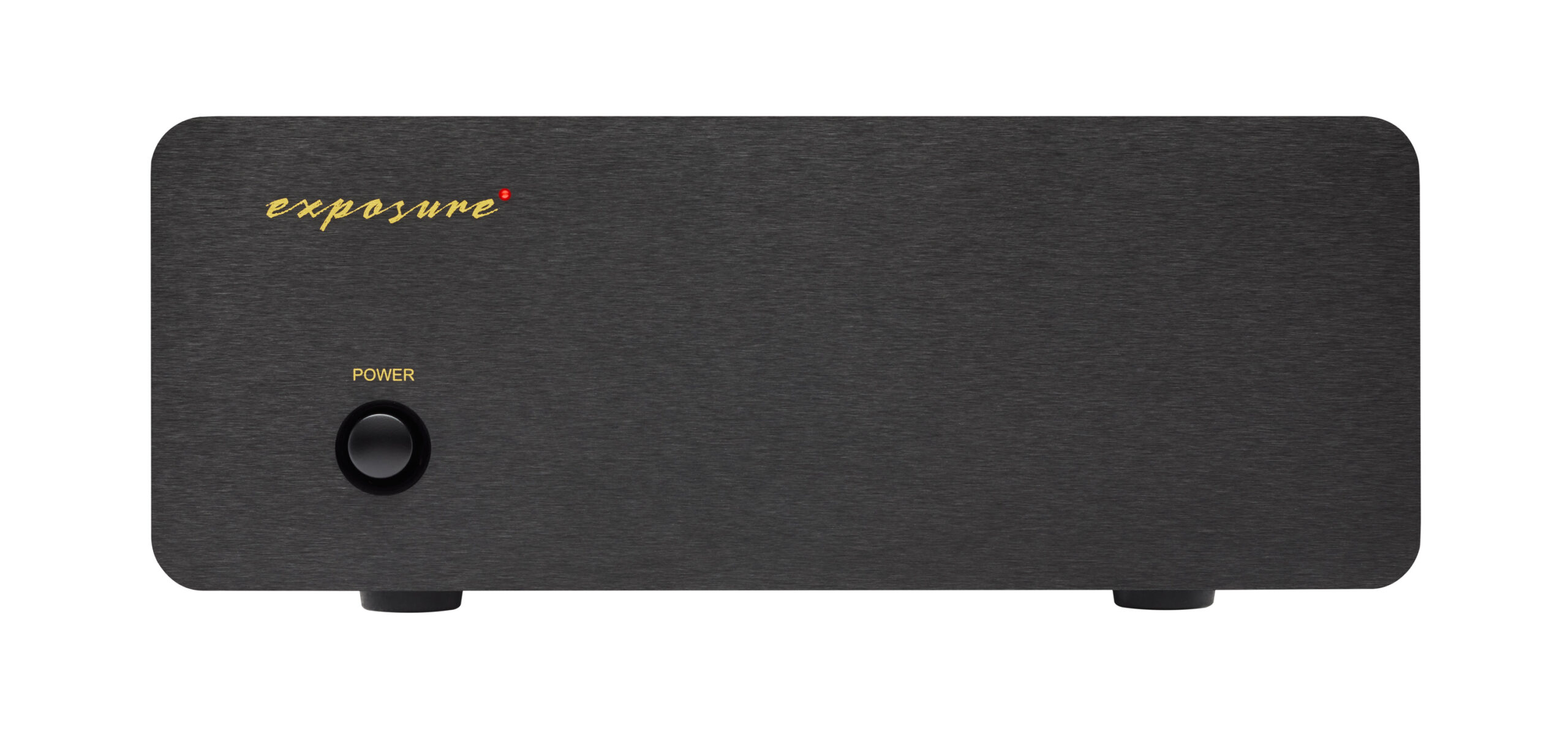

9. Available in black or titanium

Specifications

• Moving Magnet Input
  • Sensitivity : 3.5mV input for 350mV output, 40dB gain setting
  • Signal to Noise ratio, ref 1KHz & 350mV out :
    • Gain Switch 4 ON : >70dB
    • Gain Switch 4 OFF : >78dB

  Moving Coil Input

  • Sensitivity : 350uV input for 350mV output, 60dB gain setting
  • Signal to Noise ratio, ref 1KHz & 350mV out : >67db A weighted. ALL gain switches (4-6)

  General Specifications

  • Frequency Response : 30Hz – 20KHz within +/- 0.25dB ref 1KHz with low frequency roll off below 30Hz
  • Total Harmonic @ 1KHz, ref 350mV out <0.025% MC Input :
    • Maximum Ouput Voltage : 7.8V RMS 1KHz
    • Output Impedance : 50 ohms
  • Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
  • Power Consumption : <25W
  • Dimensions (WxHxD) : 218mm x 89mm x 348mm
  • Net Weight (unpacked) : 4kg
  • Gross Weight (packed) : 5kg
