PRIS:75 000 kr med media kort

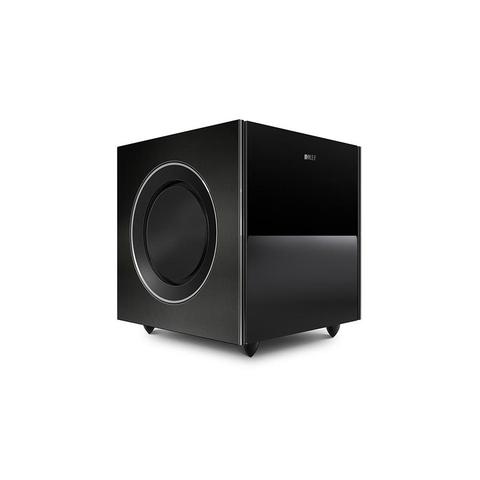

Kef The Reference 8b Subwoofer

Twin 9 inches driver ‘force-cancelling’ subwoofer

Delivering exceptional bass precision and control with zero distortion, Reference 8b is a truly extraordinary subwoofer.

For power with accuracy the Reference 8b sub has two 500W Class D amplifiers, each driving a 228mm (9 inch) long-throw, ultra-low distortion driver. These are connected back-to-back in a heavily braced, acoustically inert cabinet. The result is low distortion bass with effortless body and weight.

The standard by which others are judged, and to which they aspire. The perfect reproduction of recorded sound is what KEF’s legendary THE REFERENCE Series has always stood for. And after 40 years of continuous development, THE REFERENCE has earned its name as the yardstick of high-end acoustic engineering.

If you’re a perfectionist when it comes to enjoying movies or music, it’s the one name that towers above the rest. THE REFERENCE. It speaks for itself.

SPECIFICATIONS

CABINET FINISH

Deep piano black

WEIGHT

34kg (75lbs.)

DIMENSION

H x W x D : 398 x 365 x 429 mm (15.7 x 14.4 x 16.8 in.)

UNIT MEASUREMENT

Pair

FINISHES

Deep Piano Black

INPUTS

RCA phono sockets
Analog XLR socket
Speaker level inputs

FREQUENCY RANGE

Free Field: 18Hz (-6dB)

FREQUENCY RESPONSE

24Hz at 90dB output in free-space mode (±3dB)

NET INTERNAL VOLUME

23L

MAXIMUM OUTPUT

110dB (peak sound pressure level at 1m 50Hz)

AMPLIFIER TYPE

2 x 500 W Class D with switched mode power supply and DSP based control section
DRIVE UNITS
LF 2 x 225 mm (9in.)

POWER REQUIREMENTS

100V – 120V / 220V – 240V ~50/60Hz
POWER CONSUMPTION
1000W

LINK OUT

RCA phono socket

VARIABLE LOW PASS FILTER

Variable frequency: 40Hz to 160Hz
Variable slope: 12dB/oct, 18dB/oct, 24dB/oct
LFE mode: 350Hz, 18dB/oct
