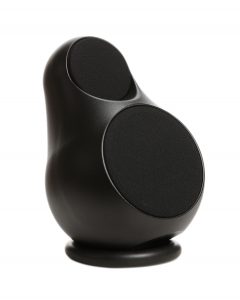

Jern 14 DS Högtalare

JERN14 DS Loudspeaker

The JERN®14 was developed to work with high quality subwoofers.

Therefore it is -6dB at 90 Hz.  Our JERN®12 can be used without a subwoofer.

Due to less bass demanded from the woofer, the JERN®14 can play louder with less distortion than the JERN®12.

The JERN®14 is the new revolutionary compact speaker from JERN®. It is elegant and small, but it delivers High End audio quality. The keys to its performance are its shape, components and choice of materials.
JERN® is not a mass producer of loudspeakers. Each speaker remains essentially hand-built by people with decades of experience at their fingertips.

The name JERN®

Speakers are a part of our homes, just like any other piece of furniture or art, and to most people it is important to have a beautiful and stylish home.
JERN®14 differs from other high end speakers, because the choice of material and casting method allows our designers and engineers to create new shapes, that improve the performance compared to regular square boxes, which compromises the sound quality.
The detailed surface of each speaker is unique to that single speaker. It is just like fingerprints; they look similar but in detail there is no other just like yours.

Design

Speakers are a part of our homes just like any other piece of furniture or art, and to most people it is important to have a beautiful and stylish home.

JERN®14 differs from other high end speakers because the choice of material and casting method allows our designers and engineers to create new shapes that improve the performance instead of regular square boxes that compromises the sound quality.

The detailed surface of each speaker is unique to that single speaker. It is just like fingerprints; they look similar but in detail there is no other just like yours.

A new generation

The iron for the cabinet is refined from recycled materials and it is good for a lifespan of more than a century.

Sound quality is an assessment of the accuracy and enjoyability. Loudspeaker sound is all about transferring the sound waves from the loudspeaker drivers to you, and reducing disturbing vibrations and noises from the cabinet. Different materials give different vibration levels. Traditionally, loudspeakers are made from wood because of its low cost and ability to reduce vibrations.

JERN® aims for the perfect sound. This is the cornerstone in our design, components, choice of materials and production.

The JERN®12, JERN®14 and JERN® w8000 loudspeakers are made from our vibration absorbing grey cast Iron, which reduce vibrations up to 100 times better than Aluminium. Our cabinets are also much better than MDF and wood. This Iron is our key to the clear and clean sound, which the JERN® loudspeakers delivers.

JERN®14 DS Specification

Design Two way. Phase linear wide dispersion design. Sealed cabinet for best transient response. Dimensions 30 cm tall, 19,5 cm deep and 21 cm wide. Net weight 12,54 kg.
Drive Units Scan-Speak woofer 5 1/4 inch 149 mm cast frame. Very smooth frequency response +- 2dB op to 9 kHz.
· Excellent Midrange Performance · Low Damping SBR Rubber Surround · Coated NRSC Fibre Glass Cone · Die cast Aluminium chassis vented below spider. Scan-Speak small 20 mm textile dome tweeter with a long excursion of +-0,7 mm, good for 6 dB / Octave phase linear filters. Sheep wool damping of the tweeter.
Frequency response 90 – 20.000 Hz
Comments These JERN®14 loudspeakers need to work with high quality subwoofers.
They are a very easy load for amplifiers.
Crossover The phase linear 6dB/octave custom-made crossover uses a Mundorf polypropylene capacitor and an air core coil. It delivers a fine 3D soundstage.
Amplifier requirements 25 – 150W / 8 Ohm Sensitivity (2.83V/1m) 88 dB Impedance 8Ω
