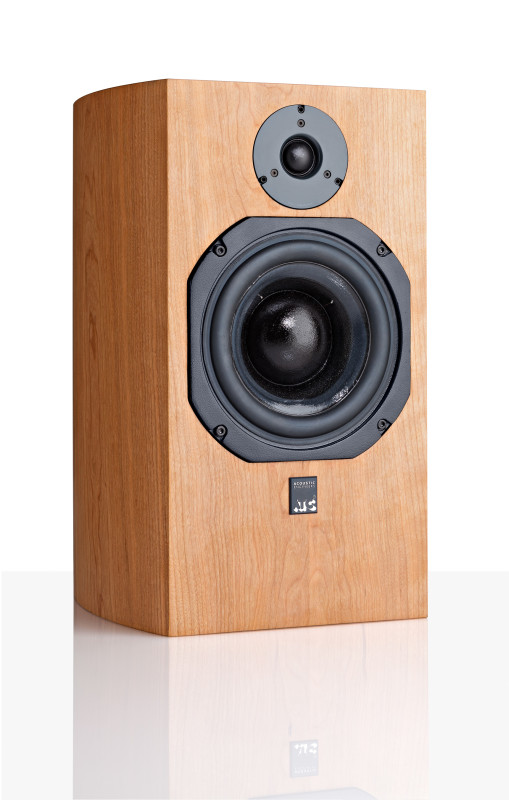

SCM19

Högtalaren finns att köpa i färgerna: Fanér Körsbär, Fanér Svart Ask, Lackerad Satin Svart och Lackerad Satin Vit

Denna högtalare finns även som Aktiv, då heter den ATC SCM 19 A och kostar 55.995

Overview

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
“SL” spec bass driver with 75mm integral soft dome.
9kg optimised short-coil/long gap motor assembly.
In-house, hand-wound precision flat wire coil.
Flat impedance curve allowing easy load for amplifiers.
6 year warranty.
Superlative clarity; excellent phase coherence; sublime bass. Hi-Fi Choice Magazine, September 2014
Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL
Matched Response: ±0.5dB
Frequency Response (-6dB): 54Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 438x265x300mm (grill adds 28mm to depth)
Weight: 17.8kg.

Stereophile SCM19 Review, June 2014

SCM19 Review, Hi-Fi Choice

The Absolute Sound SCM19 Review, August 2014

Stereophile’s Editor’s Choice Products of 2014 – ” Low distortion, zero fatigue, great looks, fair price. WNTL?”

Too Loud, Croatia. March 2015

2015 Stereophile Recommended Component – Loudspeakers

SCM19 Review, Hi-Fi Pig, 2015

SCM19 Review, Stereotimes, 2015.
