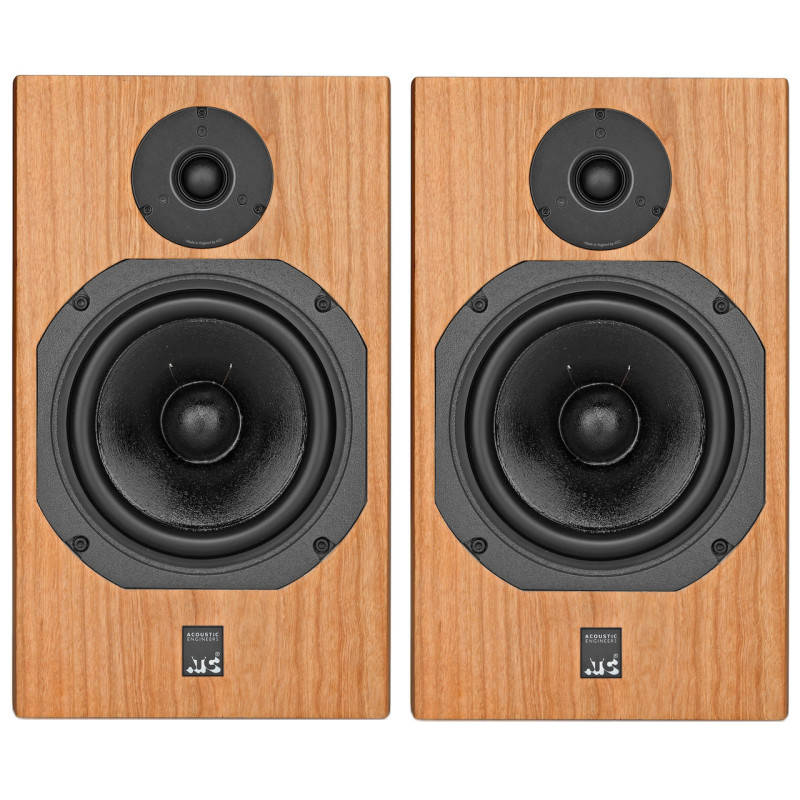

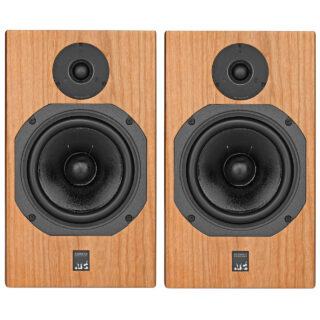

SCM11

Högtalaren finns att köpa i färgerna: Fanér Körsbär, Fanér Svart Ask, Lackerad Satin Svart och Lackerad Satin Vit

Overview

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
Precision undercut bass pole.
“CLD” driver technology with 45mm integral soft dome.
In-house, hand-wound precision flat wire coil.
Massive optimised motor assembly.
Flat impedance curve allowing easy load for amplifiers.
6 year warranty.

Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm CLD
Matched Response: ±0.5dB
Frequency Response (-6dB): 56Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.2kHz
Connectors : Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 381x232x236mm (grill adds 28mm depth)
Weight: 10.9kg.
