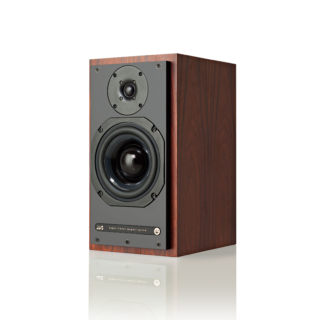

SCM20PSL

Finns i färgerna: Fanér Körsbär, Svart Ask, Ek, Valnöt. Lackerad Satin Svart, Satin Vit.

Denna modell finns även som Aktiv.

Overview

The hybrid design incorporates a 150mm bass cone on to which is grafted a 75mm soft dome.

The magnet assembly utilises ATC’s unique “SL” technology which greatly reduces distortion in moving coil drive units by a very significant 12-15dB (3rd harmonic). To minimise Time Domain Distortion both dome and cone are made from acoustically “dead” polyester wave material doped with ATC’s own formulation.

Not only does the SCM20SL reproduce bass with remarkable articulation and authority, it also has outstanding mid-band clarity, incredible dynamic range, and awesome power handling.

Drivers: LF 6.5”/150mm SL (SB75-150SL 8 Ohm), HF 1”/25mm dual suspension Soft Dome (SH25-76S 6 Ohm)
Frequency Response -6dB: 60Hz – 20kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity: 85dB/W @ 1metre
Max SPL: 108dB
Crossover Frequency: 2.5kHz
Input Connector: Bi-wire posts
Recommended Amplifier Power: 75 – 300 Watts
Cabinet Dimensions(HxWxD): 440x239x333mm
Weight: 22.7kg
