Fathom IWS är ett unikt subwoofersystem designat för att byggas in i väggen. Systemet består av en infällnadssubwoofer (IWE-108) samt en rackmonterbar extern förstärkare (SA-600). Mätmikrofon köpes separat. Denna modellen är bestyckad med ett 8″ element med en unik upphängning och utanpåliggande talspole för extrem slaglängd.

• FCAM- Flytande Konapplicering
• CTS- Koncentrisk Upphängning
• DMA Optimized- Linjär Magnetmotor
• HDF- Hög Dämpafaktorkrets
• D.A.R.O- Digital Automatisk Rums Optimisering
• On/Off/Automatic
• Obalanserade lågnivå ingångar
• Lågpass Filter
• ELF- Extrem lågfrekvensjustering
• Polaritet 0/180
• 12V Trigger

The 8-inch Fathom® IWS systems are smaller and easier to integrate than our larger in-wall Fathoms, fitting in all standard, 16-inch, on-center stud openings, and operating through very small grilles. These grilles accommodate all common drywall thicknesses, and can be easily painted to match the wall.

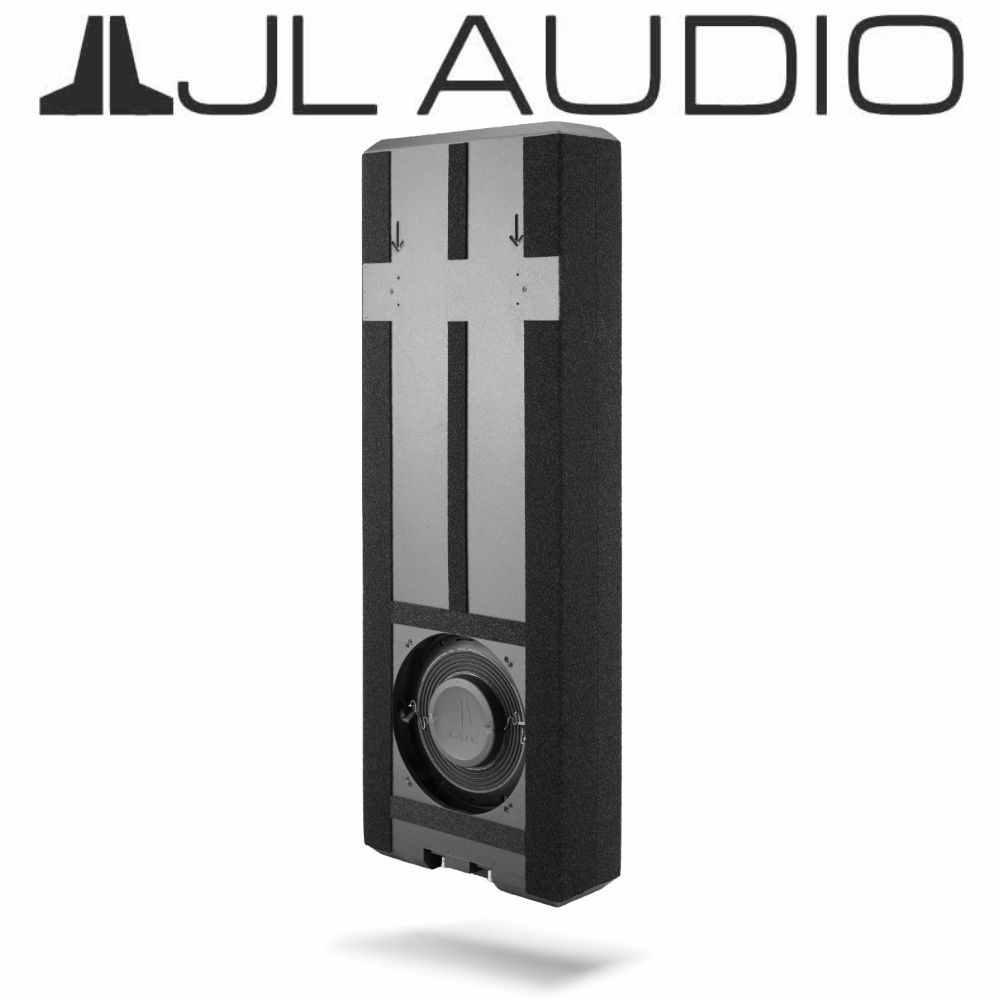

The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom® IWS products.

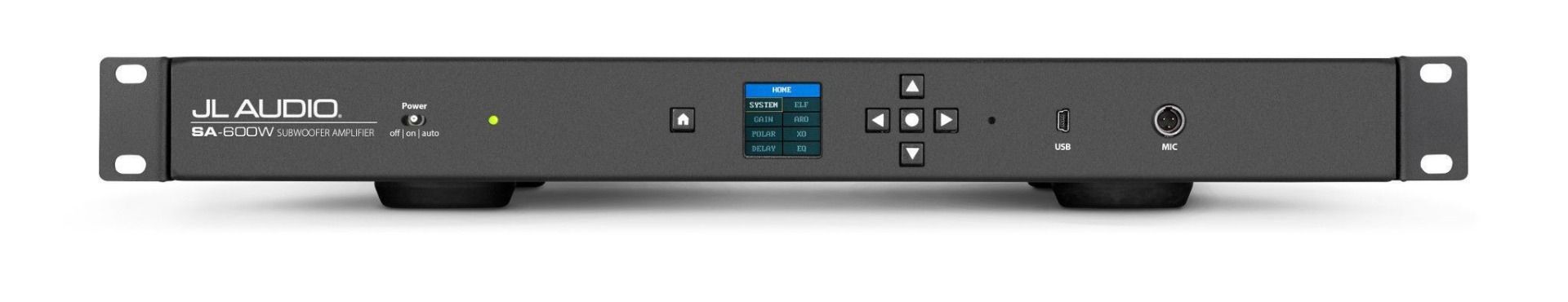

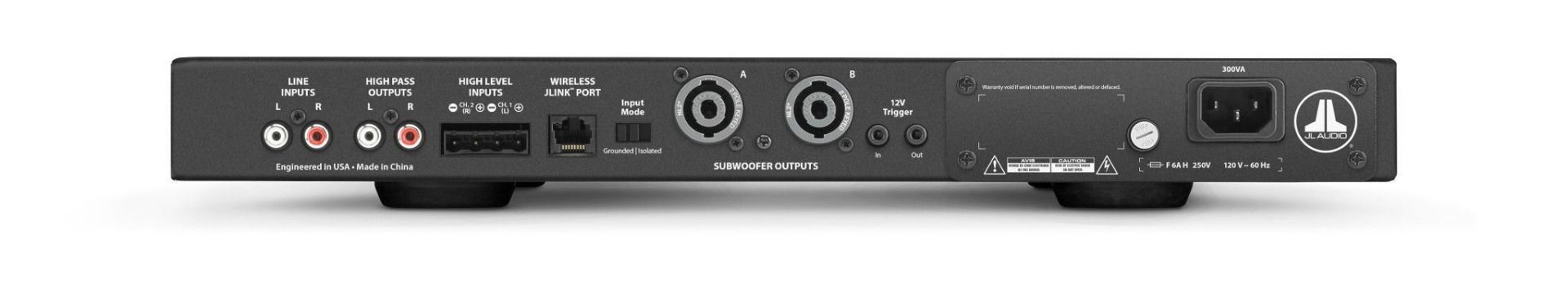

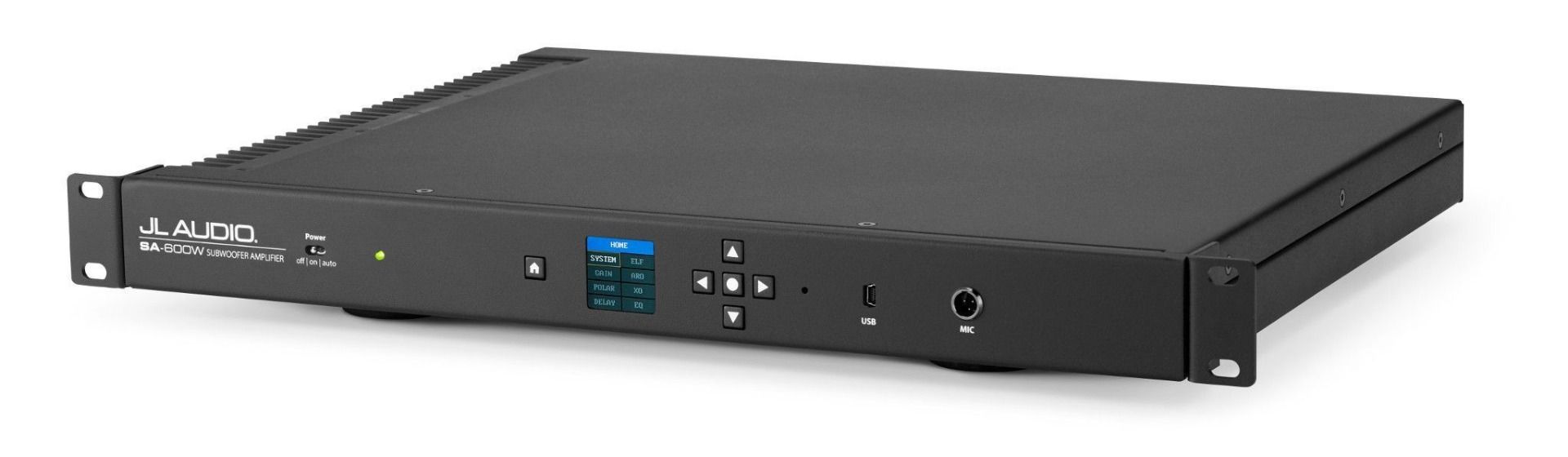

Each 8-inch Fathom® IWS system is powered by a rack-mountable amplifier, capable of generating up to 600 watts of clean power and can drive up to two enclosures. A complete set of Fathom® signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, all managed via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).
