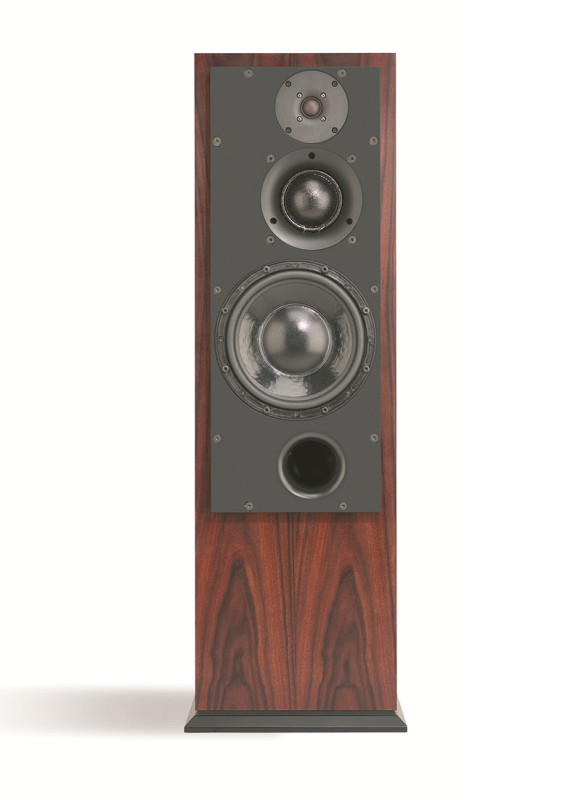

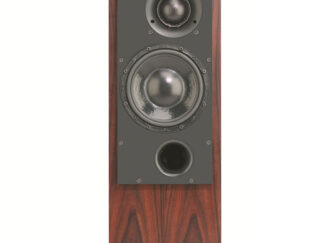

SCM50PSLT

Finns i färgerna: Fanér Körsbär, Svart Ask, Ek, Valnöt. Lackerad Satin Svart, Satin Vit.

Denna modell finns även som Aktiv.

Overview

The SCM50 ASLT (active) and SCM50 PSLT (passive) towers are designed to offer exceptional performance and enjoyment to the home hi-fi enthusiast and music lover.

The monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include the new ATC SH25-76S tweeter and enhanced port profile have brought about further improvements to all performance parameters.

Each drive unit in the active model has its own dedicated and individually matched MOS-FET amplifier, while the 234mm/9″ bass driver incorporates ATC’s unique Super Linear Magnet technology. Our active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.

Like the HF, mid and bass drivers, all electronics are designed and manufactured in-house to create a no-compromise active system. In passive form, the SCM50PSLT provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the frequency range.

Passive SCM50PSLT

Drivers: HF 25mm ATC SH25-76S, Mid 75mmATC Soft Dome, LF 234mm Super Linear
Amplitude Linearity ±2dB: 70Hz – 20kHz
Frequency Response -6dB: 40Hz & 25kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 85dB @ 1W @ 1m
Max continuous SPL @1m: 112dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms (5.5 ohms min)
Cabinet Dimensions (HxWxD): 1003x304x470mm

Active SCM50ASLT

Drivers: HF 25mm ATC SH25-76S, Mid 75mm ATC Soft Dome, LF 243mm Super Linear
Amplitude Linearity (±2dB): 70Hz–20kHz
Frequency Response (±6dB): 38Hz–25kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 112dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Male XLR
Crossover Filters: 4th Order Linkwitz-Riley
Amplifier Output: 200w LF, 100w Mid, 50w HF (active version)
Cabinet Dimensions (HxWxD): 1003x304x470mm
Weight: 53.3kg
