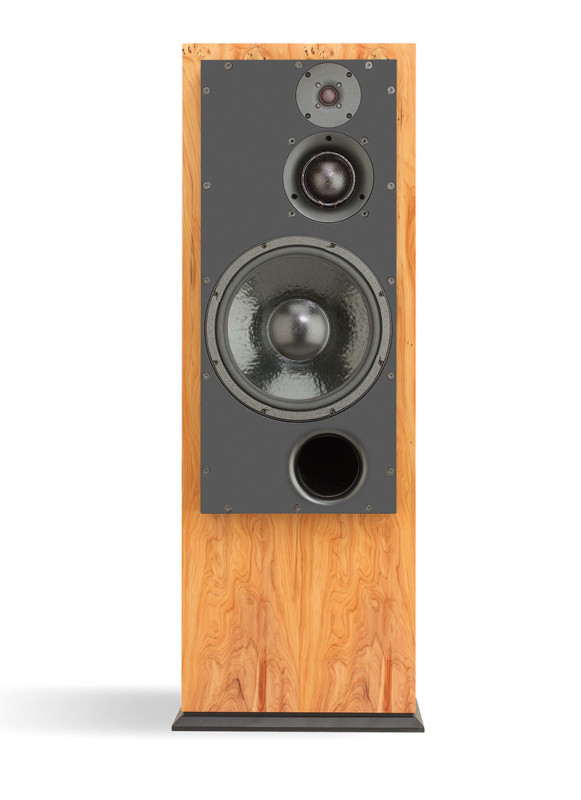

SCM100PSLT

Finns i färgerna: Fanér Körsbär, Svart Ask, Ek, Valnöt. Lackerad Satin Svart, Satin Vit.

Denna modell finns även som Aktiv.

Overview

• Also available in active version (SCM100ASLT)
• ATC SM75-150 S Soft Dome Mid driver
• Latest 314mm SL Spec Bass driver
• Massive ATC motor assembly
• Wide, even dispersion for pin-point imaging
• 350 watt Class AB tri-amp pack (active version)
• Active filters and overload protection (active version)
• 6 year warranty

Passive

Drivers: HF 25mm Mid 75mm LF 314mm Super Linear
Amplitude Linearity ±2dB: 65Hz – 17kHz
Frequency Response -6dB: 35Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 88dB @ 1W @ 1m
Max continuous SPL @1m: 115dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 1070x397x560mm

Active

Drivers: HF 25mm Neodymium, Mid 75mm ATC Soft Dome, LF 314mm SL
Amplitude Linearity (±2dB): 65Hz–17kHz
Frequency Response (±6dB): 32Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 115dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Male XLR
Filters: Active – 4th Order Linkwitz-Riley, Passive – 2nd Order linkwitz-Riley
Amplifier Output: 200w LF, 100w Mid, 50w HF (active version)
Cabinet Dimensions (HxWxD): 1070x397x560mm
Weight: 68kg
