PRIS:189 995 kr med media kort

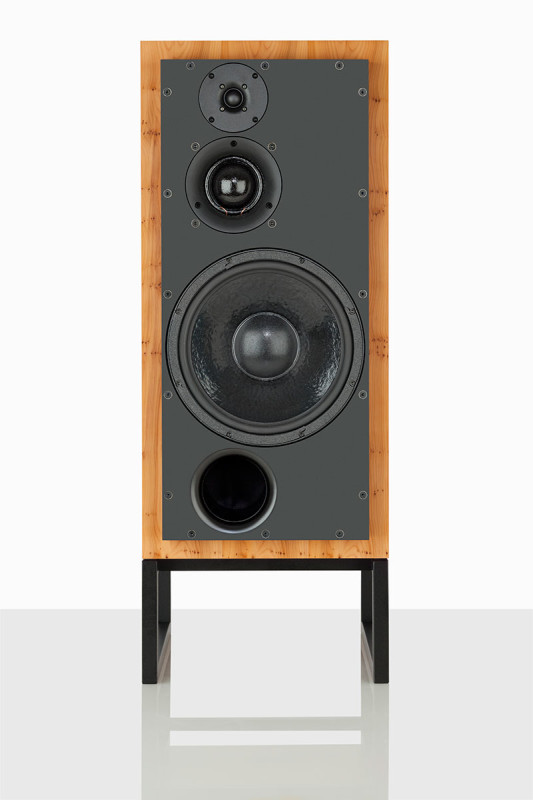

ATC Classic Serien SCM 100 PSL Högtalare

SCM100PSL

Finns i färgerna: Fanér Körsbär, Svart Ask, Ek, Valnöt. Lackerad Satin Svart, Satin Vit.

Denna modell finns även som Aktiv.

Overview

The SCM100 ASL (active) and SCM100 SL (passive) are designed to perform at their best with the finest quality hi-fi equipment.

Like their smaller brother, the SCM50 ASL, the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all performance parameters.

Bass performance is equally impressive, thanks to ATC’s 12″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology. Bass, mid and HF drive units in the active model have their own dedicated and individually matched MOSFET amplifiers.

ATC’s active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.

In passive form, the SCM100 SL provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the audio frequency range.

SCM100SL (Passive)

Drivers: HF 25mm Mid 75mm LF 314mm Super Linear
Amplitude Linearity ±2dB: 65Hz – 17kHz
Frequency Response -6dB: 35Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 88dB @ 1W @ 1m
Max continuous SPL @1m: 115dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms
Cabinet Dimensions(HxWxD): 834x400x530mm (stands add 200mm to height)
Weight: 57kg

SCM100ASL (Active)

Drivers: HF 25mm Mid 75mm LF 314mm Super Linear
Amplitude Linearity ±2dB: 65Hz – 17kHz
Frequency Response -6dB: 32Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Max continuous SPL @1m: 115dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: XLR
Input Sensitivity: 1V
Input Impedance: >10k ohms balanced XLR
Amplifier Output: HF 50 Watts RMS MF 100 Watts RMS LF 200 Watts RMS
Overload Protection: LDR tweeter protection, plus active FET MGR (amplifiers)
Power Requirements: Voltage: 100, 115, 230 (factory set)
Frequency: 50/60Hz
Power: Nominal 90 Watts, Driven 350 Watts
Cabinet Dimensions(HxWxD): 834 x 400 x 585mm including amps (stands add 200mm to height)
Weight: 64.8kg
