In smaller environments, Reference 2c has the power to immerse you in your music or the action on screen as much as its larger sibling.
With a 125mm (5-in.) Uni-Q point source driver array flanked by two powerful 165mm (6.5-in.) bass drivers the Reference 2c reveals dynamics and spatial precision with absolute clarity. In smaller spaces, Reference 2c has the power to immerse you in the music or the action on screen as much as its larger sibling.
SPECIFICATIONS

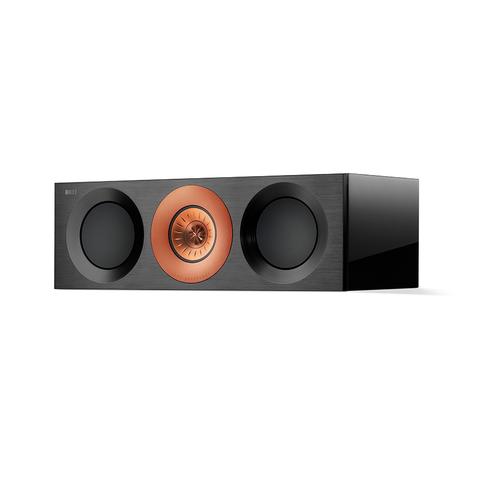

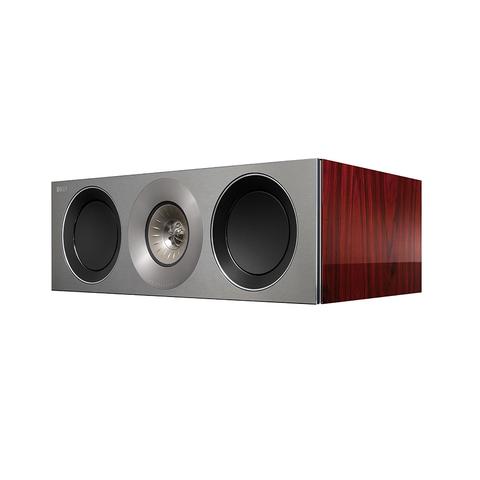

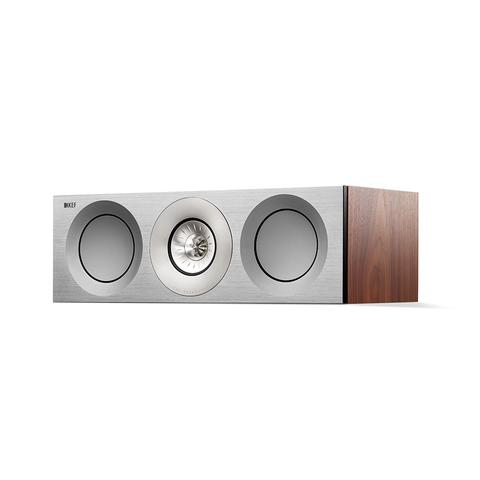

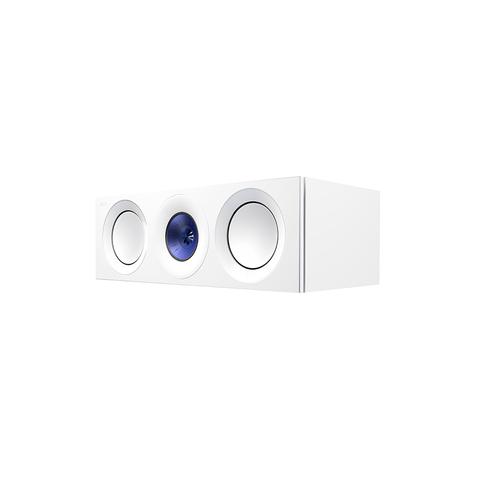

Silver satin walnut, Copper black aluminium, Blue ice white, Deep piano black [while stock last], Satin American walnut [while stock last], Luxury gloss rosewood [while stock last]
WEIGHT
22.8kg (50.3 lbs)
DIMENSIONS
H x W x D with grille, terminal & plinth : 205 x 603 x 325 mm (8.1 x 24.8 x 12.8 in.)
DESIGN
Three-way closed box
UNIT MEASUREMENT
Piece
FREQUENCY RANGE
Typical in room bass response: 46Hz (-6dB)
Free Field: 65Hz – 45kHz (-6dB)
FREQUENCY RESPONSE
80Hz – 35kHz (±3dB)
HARMONIC DISTORTION
2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz
MAXIMUM OUTPUT
113.5dB (peak sound pressure level at 1m with pink noise)
AMPLIFIER CLASS
50 – 300W
SENSITIVITY
87.5dB (2.83V/1m)
NOMINAL IMPEDANCE
8 Ohms (min.3.2 Ohms)
DRIVE UNITS
Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium Bass units:
LF: 2 x165mm (6.5in.) aluminium
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium Bass units:
LF: 2 x165mm (6.5in.) aluminium
CROSSOVER FREQUENCIES
350Hz, 2.8kHz
