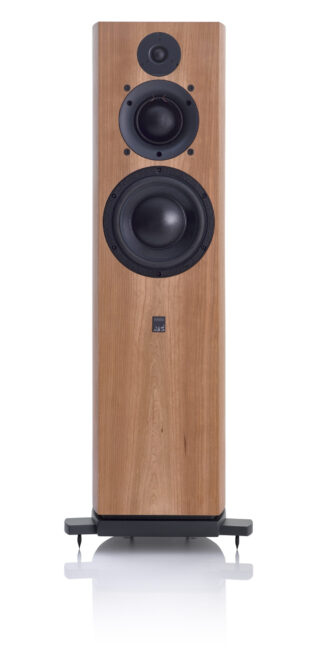

ATC 40 A: 3-way active

New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.
ATC Soft Dome mid-range driver.
ATC 164mm short coil bass driver.
All drive units incorporate massive optimised motor assemblies.
On-board grounded source 242 watt Class A/B Tri-amplifier.
Active crossover filters and overload protection.
Veneered Finish Options – Cherry, Black Ash.
Painted Finish Options – Satin Black, Satin White.

Drivers: HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 48Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 112dB
Crossover Frequencies: 380Hz & 3.5kHz
Input Connector: Female XLR
Input sensitivity : 1V
Filters : 4^th Order critically damped with phase compensation.
Overload Protection : Active FET momentary gain reduction.
Fault Protection : DC fault protection and thermal trip. Fault indication on rear panel mounted LED.
Amplifier Output: 150W LF, 60W MF, 32W HF
Cabinet Dimensions (HxWxD): 980 x 370 x 344mm / 38.58 x 14.56 x 13.54″ (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 36kg
Spikes: 4 per cabinet, M8 x 1.25mm
