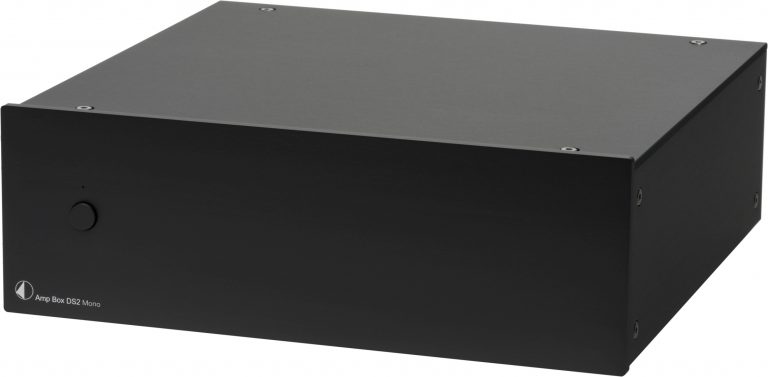

Pro-Ject Amp Box DS2 Mono Slutsteg

Excellent sound quality combined with compact dimensions and high energy efficiency!

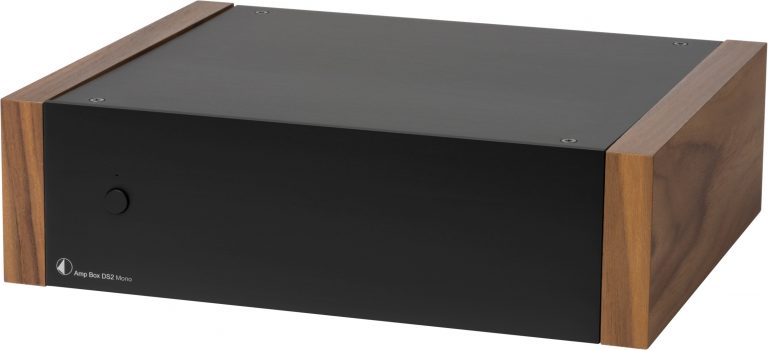

The heart of this audiophile amplifier is a Class D module which is highly efficient and energy saving. It delivers high output power, to drive demanding speakers and fill any room with pure sound, very low and frequency-independent THD to produce the cleanest sound possible. The top grade power amplifier module guarantees fully load-independent frequency response, low output impedance and very low noise floor. It meets our highest sonic standards in terms of spaciousness and fine dynamics and provides sufficient power for excellent reproduction in normal living rooms. As a sonic guideline for Pro-Ject amplifiers the homogeneous liquid sound of audiophile tube amplifiers are used as benchmark. All our next generation devices offer the possibility to come with wooden side panels. The side panels give the products a very classy and unique look. Three different finishes (rosewood, walnut and eucalyptus) are available to meet any taste and to match your furniture. A four layered PCB enables us to use shorter signal paths, which are also responsible for the improved sound compared to its predecessor. Amp Box DS2 Mono will fill your home with the lush, energetic and smooth sound, usually found in much more expensive products. As additional upgrade you can use our Power Box DS Amp to improve the soundquality even further. The casing, made of aluminum and metal, is both elegant and solid, to protect against vibration and deliver highest aesthetics. The unmatched sound and the no compromise components make it an audiophile high end bargain!

Features

  • Audiophile PWM circuit (Pulse Wave Modulation)
  • Very low distortion at very impressive bandwith
  • High efficiency from mains to audio power
  • Multi layered PCB for short signal paths
  • Line level input (RCA)
  • Loop output (RCA)
  • Isolated speaker outputs
  • Trigger input & loop out
  • Elegant aluminium – metal sandwich casing
  • Available in black or silver
  • Optional matt wooden side panels in Eucalyptus, Rosenut, Walnut (+500:-)

Technical Specifications

Output power 120W / 205W @ 8 Ohms / 4 Ohms
Frequency response 10Hz – 50kHz (+ 0dB, – 3dB)
Noise floor >-90dB
THD < 0,1% @ 90W
Line level input 1 x RCA/Cinch-sockets
Input sensitivity 550mV
Input impedance 100 kOhm
Speaker out 4 mm bananas, spades or bare wire
Trigger 12V switching voltage (2-pole coaxial jack; .5mm)
External power supply 48V/2,5A DC;100 – 240V, 50/60Hz
Standby-Stromverbrauch < 1 Watt
Dimensions W x H x D 206 x 68 x 194 mm (Alu)
240 x 69 x 194 mm (Wood)
Weight 1450 g (Alu) without power supply
1900 g (Wood) without power supply
