PRIS:20 000 kr med media kort

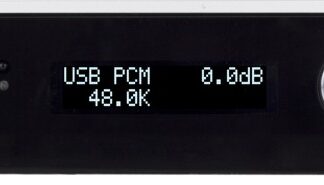

M2 TECH Young MkIII DAC

The Young MkIII gives you total control of the music flowing from your sources to the amplifier and then to the speakers.

With a wealth of input channels and extensive control options, you have always full command on your audio system, with the greatest confidence that the quality of the original music material is delivered to the speakers without any detriment.

Whether your source is a computer, a smartphone, a DVD player or a turntable, the Young MkIII delivers a crisp and alive analog sound at its outputs, to drive any amplifier at best.

You control it by the front panel encoder, using the remote control or by your Android smartphone via the same wireless connection which allows you to stream audio.

Streaming lovers will enjoy the high quality ensured by MQA©, while smartphone users will take advantage of aptX©.

M2Tech has adopted MQA to support master quality playback and streaming. MQA is an innovative encoding algorithm that captures the original master sound quality; ‘folds’ the file into a smaller size for easy streaming or download; and authenticates the file when it plays back on an MQA-enabled device.
M2Tech recognizes the sonic and technical advantages of MQA, therefore all M2Tech DAC products will include MQA in their format decoding pool.

Specifications

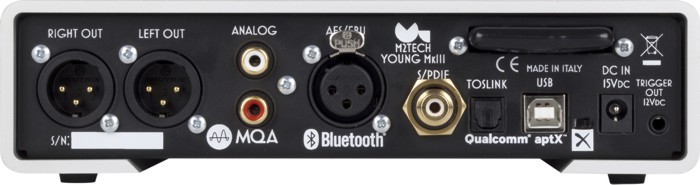

Inputs:
analog single-ended (RCA)
S/PDIF (RCA)
AES/EBU (XLR)
Optical (Toslink)
USB 2.0 high speed
Bluetooth©
Outputs:
analog balanced (XLR)
trigger (jack 3.5mm)
Sample frequencies:
PCM 44.1kHz to 384kHz
DoP 64X to 128X
Native DSD 64x to 256x
PCM resolution:
16 bits to 32 bits
Signal-to-Noise Ratio:
118dBA (single-ended)
120dBA (balanced)
THD+N:
0.0008% @ 5Vrms out balanced
Output Voltage:
2.5Vrms or 5Vrms (single-ended)
5Vrms or 10Vrms (balanced)
12VDC (trigger)
Output impedance:
100 Ohms (single-ended)
200 Ohms (balanced)
Input impedance:
47 kOhms (analog)
75 Ohms (SPDIF)
110 Ohms (AESEBU)
Supply voltage:
15VDC
Power Consumption:
4W (operational)
0.23W (standby)
Size:
200x200x50mm (wxdxh)
Weight:
net 2kg (including ancillaries)
gross 2.5kg
