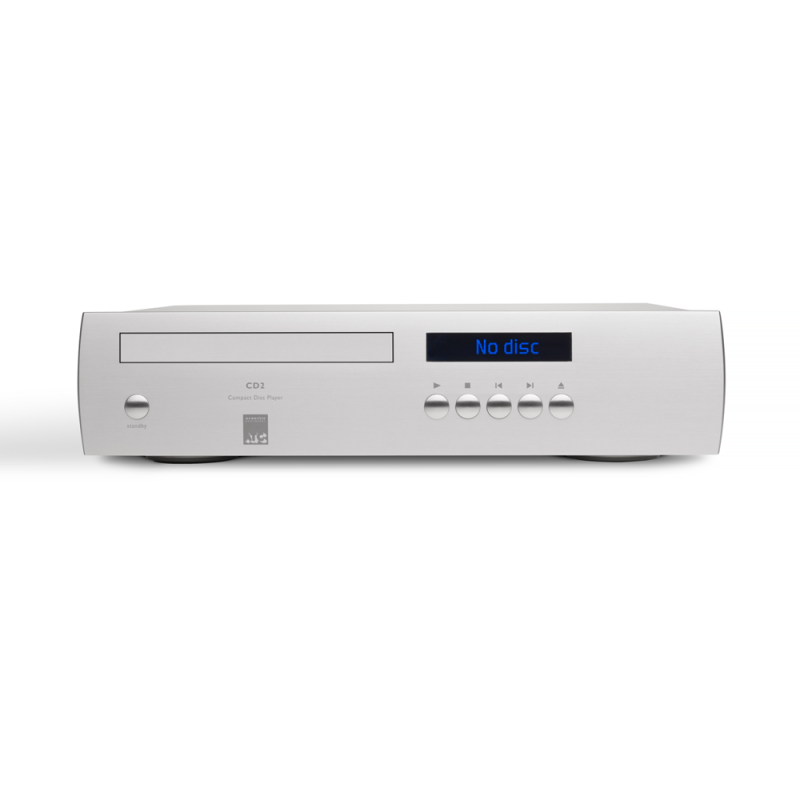

CD2

Overview

• High performance TEAC CD Transport
• Premium AKM 32-bit DAC
• Coaxial & TOSLINK Digital Outputs
• Balanced XLR and Un-balanced RCA outputs
• ATC Discrete class-A output buffers
• Compact Size – 2/3rds width
• Handmade in England
• 6 year warranty*

* TWO years on CD mechanism.

Maximum Output Level: Phono 9.2V r.m.s XLR 18.4V r.m.s.
Output Impedance: 10 Ohms
S+N/N Ratio: Wide Band <96dB DIN <108dB IEC“A” >112dB
Output XLR CMRR (100Hz – 10kHz): <60dB
Distortion: 1kHz < 0.0015% (-96dB) 10kHz < 0.003% (-90dB)
Frequency Response (20Hz–20kHz): +/- 0.2dB
S/PDIF Outputs: Toslink, Coaxial 2V pk-pk, source, Impedance 75Ohm
Dimensions (HxWxD): 77 x 315 x 315mm / 3.1 x 12.4 x 12.4˝
Dimensions exclude rear panel connectors. Take care to leave space behind the unit for connectors and cables.
Weight: 4.2kg / 9.24Ilbs
