SUPRA LORAD strömkabel 1meter

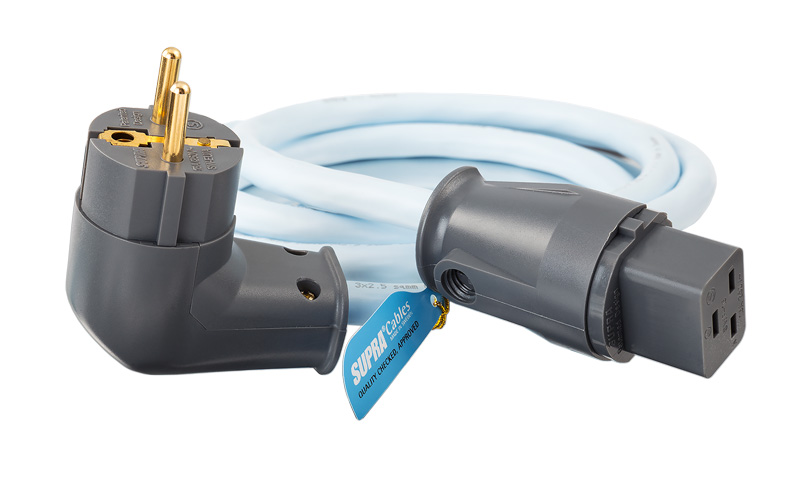

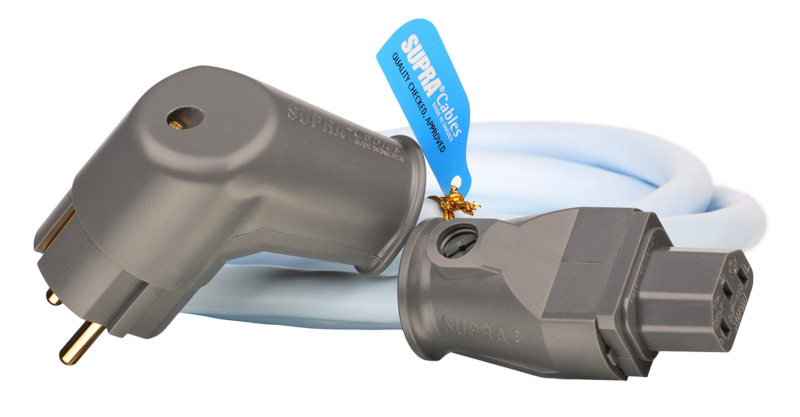

Denna kabel finns att köpa i olika längder kontakta oss för din längd och pris,kabeln finns också med vinklad kontakt för samma pris. Till Lorad 08 och 10 så behöver du 16 A kontakt på änden som skall passa på blocket.
LORAD 1.5 CS-EU
LoRad 1.5 CS-EU (10A)

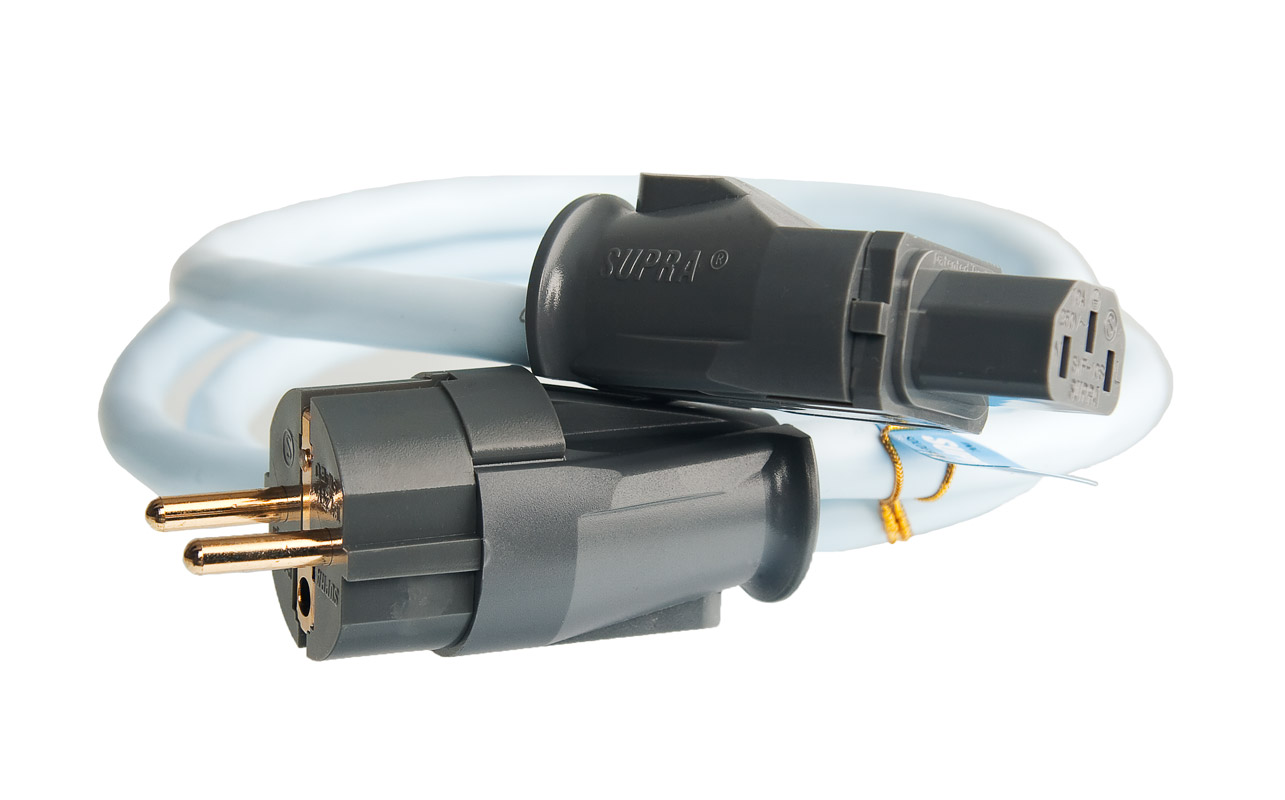

Screened cord set with LoRad 3×1.5 mm² cable, SWF10 female connector (IEC-320) and SW-EU male plug. Current rating 10A. EU-version, with Schuko plugs, is the most common standard throughout Europe. Exceptions are Denmark, Italy, Ireland and Britain.
LoRad Cord Sets
LoRad is a scrrened mains flex for connection of audio equipment to 230V mains. The screening minimises the interference from electric alternating fields, protecting from both radiation and pick-up. For cancelling of magnetic alternating fields the LoRad is cabled with a short pitch twisting. LoRad EU is a cord set for European connector standard, the Schuko.
LoRad means LOw RADiation and the design of these cables minimises both electrical and magnetic fields. LoRad protects both from fields radiating from the cable as well as pick-up of surrounding noise fields, e.g. wireless and mobile phones, radio broadcasts, etc. LoRad MkII is a development of the Lorad concept, now with improved shielding properties, flexibility, bend-resistance and strength.
The radiation is lowered by means of two techniques. First the shield minimises the alternating electrical fields from the cable. It also minimises the RF pick-up (Radio Frequency). The magnetic fields are cancelled by twisting the conductors in a short pitch.
The benefits are cleaner sound, pronounced transients and an improved 3D soundstage. We also hear customers describe more detailed sound and we are not surprised. If your equipment is installed using SUPRA cables, the noise floor is generally suppressed by several dB, allowing more of the content to be revealed. Low radiating cables is also increasingly important from a health point of view. Science has proven that alternating magnetic fields affects cell growth.
The biggest differences between LoRad MkII and the old LoRad cable, is that it is now based on SUPRA’s unique Nylon screen concept. Semiconducting Nylon Screen provides improved shielding properties, bending strength, environmental immunity, higher tensile strength and less microphonic effect. The Nylon screen is connected with a drain-wire. We have tested and evaluated all known types of screens for making such a good cable as possible. SUPRA’s semi-conductive Nylon screen was the only one that passed the safety requirements and, moreover, its shielding properties was best in test. LoRad MkII is tested and certified by Intertek Sweden, meeting the European safety regulation HD21.5 S3.
Specifications:
Conductor material: Tin plated copper
Cross section area: 3 x 1.5 mm2
Max current: 10A
Max voltage: 250V
Safety approval in accordance to HD 21.5 S3, CE-marked
* PE=Polyethylene
Notice!
LoRad must be connected to an earthed socket in order to get the shielding function.
Selected customers:
Swedish National Laboratory of Forensic Science, SKL
Swedish Air Force (JAS Project)
Hospitals
A majority of European air traffic control towers
Applications:
Hi-Fi and studios
Medical equipment
Laboratories
EHS (electro hypersensitivity)
Noise critical installations
Technical Info
Specifications: LoRad 1.5 CS-EU
Application: Earthed 250V
Standard: EU/Fr
Connectors: SW-EU -> SWF-10s
Voltage Nom. (V): 250V
Current Nom (A): 10A
Cable Construction
Wires: 3×1.5mm2, Tin plated 204×0.10 OFC.
Conductor insulation: Dual layer PVC. Green/Yellow, Blue & Brown.
Fillers/Armoring: Yarn, 3 pcs.
Screen connection: Drain wire, Ultra flexible, Tin plated 66×0.07 OFC.
Armoring & insulation: Woven polyester tape
Screen: Woven Semi-conductive Nylon/Carbon tape.
Jacket: PVC
