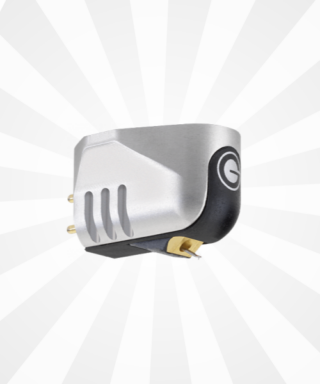

To ensure a record cartridge reproduces an accurate transcription of the record groove, the cartridge components must be rigidly mounted to the tone arm, whilst simultaneously allowing the tiniest movements of the diamond stylus to be transmitted, via the cantilever, to the sensing coils. The Legacy boasts an ultra low resonance magnesium metal body which is both very light and extremely strong. For convenience and rigidity, it has threaded inserts allowing the cartridge to be easily mounted and accurately aligned into the headshell. The stylus is a very low mass ‘Vital’ fine line diamond, which is highly polished and gives extremely low distortion. To maintain rigidity, this is attached to a hard alloy cantilever which transfers the maximum level of detail from the diamond to the coils; the latter are hand wound using only the highest purity copper.

More Info
To achieve the optimum compliance required to deliver a smooth, extended frequency response, the stylus damper is formed from a bespoke rubber mixture. Lastly, a precision, rare earth, Neodymium iron boron magnet helps deliver outstanding dynamics

Transducer Characteristics
Frequency response: 20 Hz – 22 kHz +/- 3 dB
Channel balance: 1 dB max. at 1 kHz
Channel separation: 25 dB min. at 1 kHz
Sensitivity: 0.25 mV 1 dB @ 1 kHz
Static compliance: 16 mm/N
Vertical tracking angle: 20 °
Stylus radius: Vital fine line
Stylus type: Non-replaceable
Electrical Characteristics
Load resistance: 100 Ω
Load capacitance: 100 – 1000 pF
Internal inductance: 3 uH
Internal resistance: 7 Ω
Mechanical Characteristics
Cartridge weight: 8 g
Fixing centres: 0.5 in (12.7 mm)
Playing weight: 1.5 g – 2.0 g (1.75 g nom)
