Phono preamplifier
Thorens turntables can be considered state-of-the-art in hi-fi technology as they would extract even the most minute details from your precious vinyl records. The signals generated by the pickup cartridges are however very small and therefore must be amplified to a much higher level. Regrettably, most of today’s amplifiers are no longer equipped with a dedicated phono stage. This unfortunate situation was a good reason for Thorens to develop the TEP 302, a complete phono preamplifier including RIAA equalization, which was to complement the outstanding playback performance of our turntables.

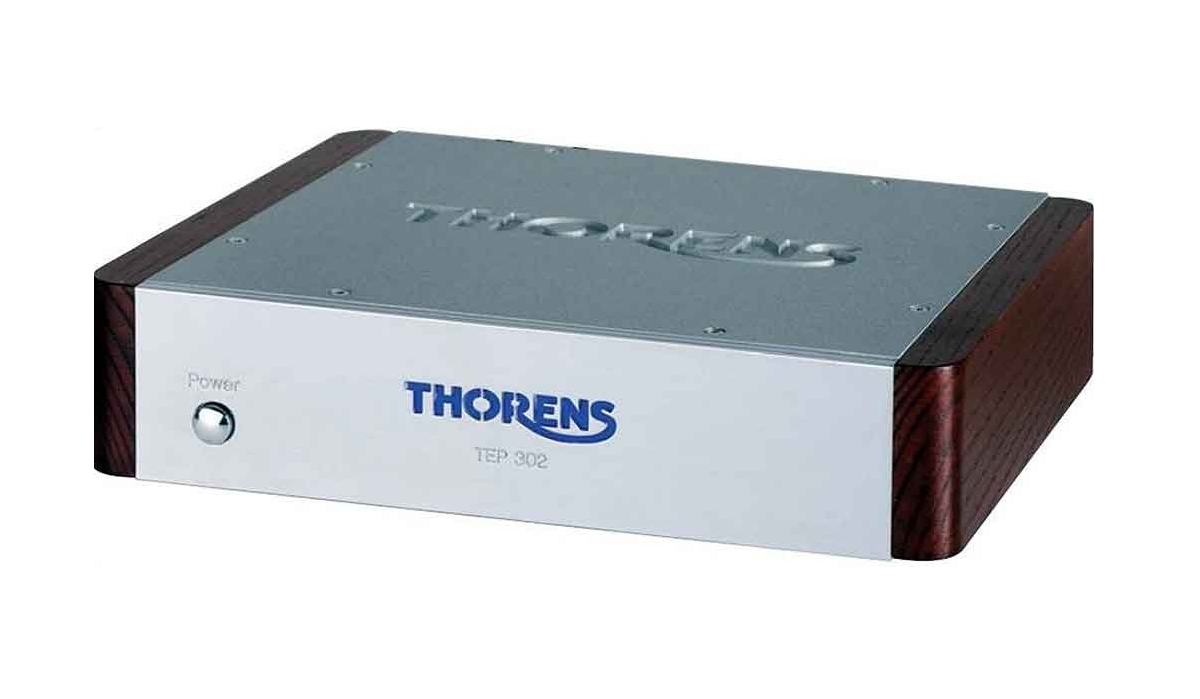

TEP 302 black ash

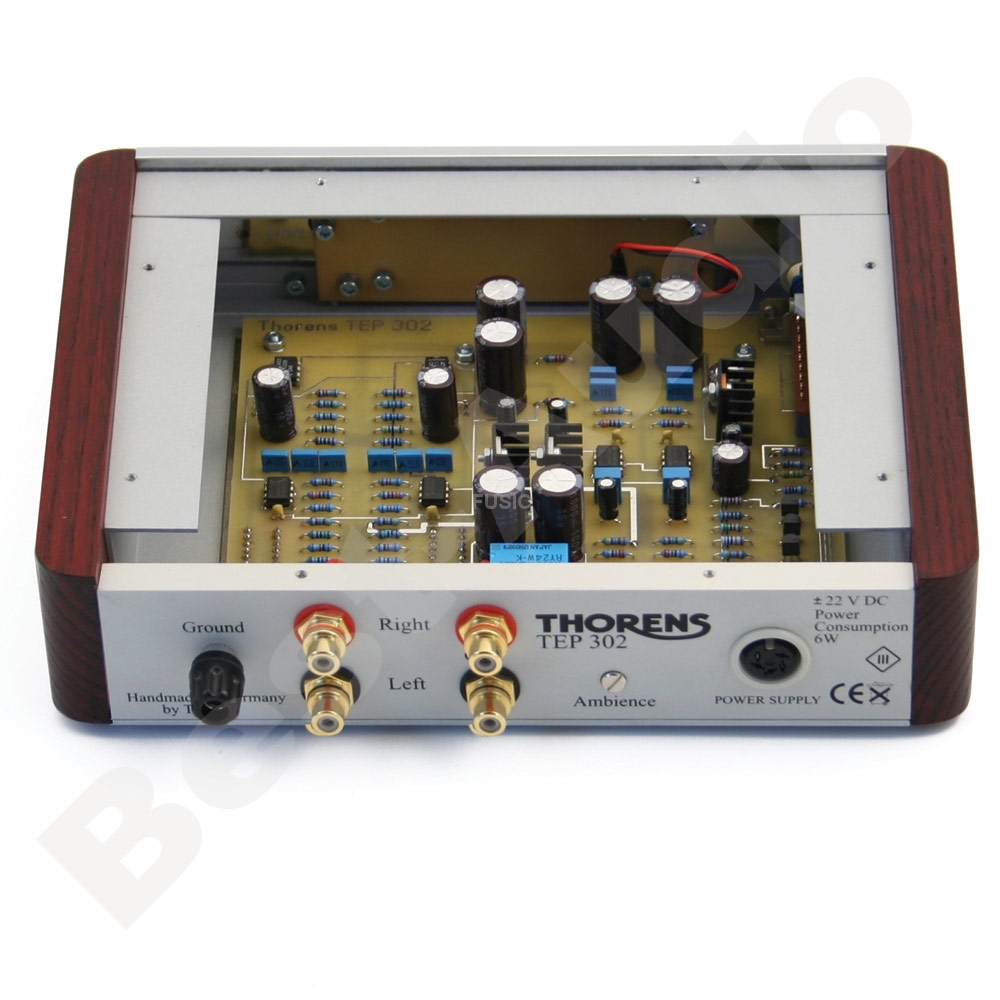

The TEP 302 is a pure-bred Class-A amplifier which employs selected, very special low-noise operational amplifiers throughout. The circuitry has been optimized “by ear” after several extended listening sessions. Of course, the TEP 302 also features a 15-Hz subsonic filter in order to protect the woofers from dangerous excursions when a warped record is played. More details, more dynamics.

Compatibility MM or MC pickups
RIAA Equalisation ± 0.5 dB (20 Hz – 20 kHz)
Gain 40 dB (MM), 60 dB (MC)
Input RCA connectors
Input Capacity 0, 100, 220 pF; adaptable (DIL switches)
Input Impedance 47 kΩ; adaptable (metal film resistors)
Metal Film Resistors 3,5 kΩ, 1,5 kΩ, 1 kΩ, 680 Ω, 150 Ω
Output RCA connectors
Power supply external mains adaptor (115-230 V / 50-60 Hz depending on type)
Power Consumption 6 W
no stand-by
Dimensions 230 x 50 x 175 mm (W x H x D)
Weight 3.0 kg
Finish chrome / black ash, red ash or maple (solid wood)
Scope of Delivery mains adapter with power cord, RCA interconnects, operating instructions.
