Onkyo TX-8390 Network Receiver
Denna nyhet ifrån Onkyo kommer i Novmber men här har ni möjlighet att läsa om den redan nu.
This luxuriously appointed component fits a wealth of audio-video capabilities into robust stereo architecture, energizing TV entertainment, games, and music with 200 W + 200 W of speaker-driving power. The linage of the Onkyo Pure Hi-Fi family is reflected in the 5 mm-thick aluminum front panel and controls, custom power supply, and dual 10,000 μF capacitors. Quad-core SoC supports a multi-technology audio platform over 802.11ac 2×2 MIMO Wi-Fi® including Chromecast built-in, AirPlay 2, and DTS Play-Fi®. The receiver is Works with Sonos and Works with Alexa certified, and can be controlled by voice using Siri, Google Assistant, and Alexa-enabled devices. Popular music-streaming services are built in. Bluetooth® wireless technology, phono input, and Hi-Res Audio support including MQA expand your entertainment possibilities even further.
PRODUCT HIGHLIGHTS
- 200 W + 200 W Dynamic Audio Amplification
- Works with Sonos, Chromecast built-in, DTS Play-Fi®, AirPlay 2, FlareConnect™*1, Spotify®, Amazon Music, TIDAL, Deezer, TuneIn*2
- Control audio playback by voice using Google Assistant or Siri enabled devices
- Works with Alexa*3 and the Google Assistant
- Hand-selected high-grade parts throughout with luxurious industrial design
- Large HDMI® grounds and isolated SoC
- Quad-core SoC supports 802.11ac (2×2 MIMO) Wi-Fi®*4
- HDMI supports 4K/60p, 4K HDR, BT.2020, HDCP 2.3
- My Input preset selector with volume, tone/balance, and sound-mode memory
- AccuEQ Stereo with Subwoofer EQ
- FM/RDS and DAB+ radio with 40-station memory presets
AMPLIFIER FEATURES
- 200 W/Ch (6 Ω, 1 kHz, 10% THD, 2 channels driven), 180 W/Ch (6 Ω, 1 kHz, 1% THD, 2 channels driven, IEC)
- Customized High-Current Low-Noise Power Transformer
- Custom 10,000 μF high-current smoothing capacitors
- Non-phase-shift amp topology with discrete output stage
- Dual output transistors on each channel support high current delivery
- Anti-resonant extruded aluminum heat-sink with black alumite coating
- Large HDMI grounds and short signal-paths reduce noise
- AKM (AK4458) DAC supports 384 kHz/32-bit D/A conversion
- VLSC™ (Vector Linear Shaping Circuitry) noise-filtering
- PLL (Phase Locked Loop) anti-jitter technology for SPDIF audio
- Pure Audio Mode for flawless analog sound
VIDEO & AUDIO SUPPORT
- Supports HDCP 2.3, 4K/60p, HDR (Dolby Vision™, HDR10, HLG), BT.2020, 4:4:4/24-bit, 3D Video, ARC (Audio Return Channel), DeepColor™, x.v.Color, and LipSync via HDMI pass-through
- 1080p to 4K Super Resolution upscaling via HDMI
- Supports Hi-Res Audio formats including MQA*5; DSD256, DSD128, DSD64 (DSD converted to 176.4 kHz/24-bit PCM); FLAC, WAV [RIFF], AIFF to 192 kHz/24-bit; and ALAC to 96 kHz/24-bit*6
NETWORK FEATURES
- Supports multi-room streaming, internet streaming services, and Onkyo Controller*7 remote streaming app
- Works with Alexa (future firmware update required)
- Works with Sonos for the Sonos Home Sound System*8
- Chromecast built-in and voice control*9 with the Google Assistant
- AirPlay 2 multi-room audio and voice control*10 with Siri
- DTS Play-Fi multi-room audio via Onkyo Music Control App*7
- Quad-core SoC supports multiple processing functions including 802.11ac (2×2 MIMO) 5 GHz/2.4 GHz Wi-Fi

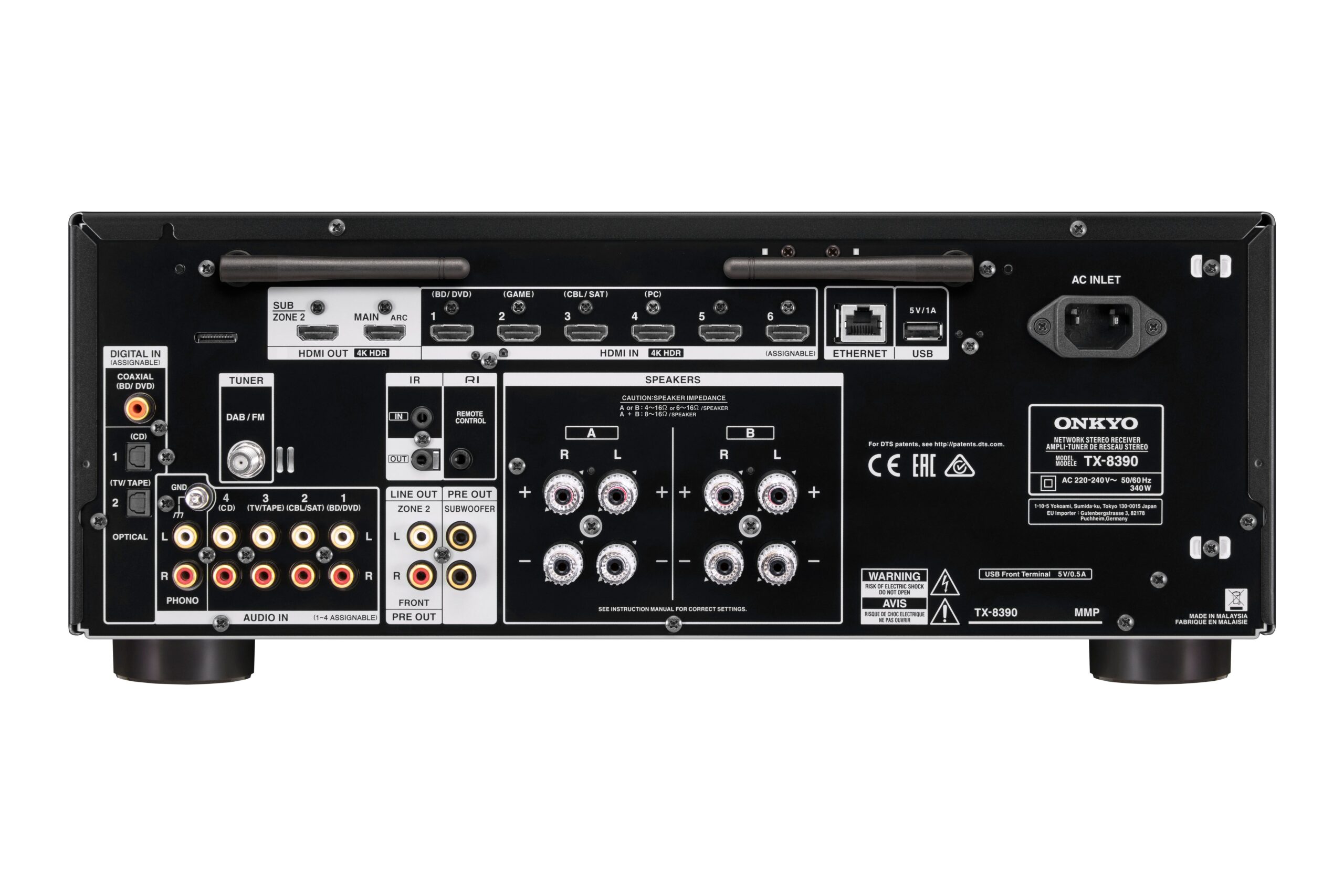

CONNECTION FEATURES
- 6 HDMI inputs and 2 outputs (Main [ARC], Sub/Zone 2)
- 3 digital audio inputs (2 optical and 1 coaxial, assignable)
- 4 analog RCA inputs (assignable)
- Phono input with built-in MM equalizer for turntable connection
- 3.5 mm setup mic input for AccuEQ Stereo (front)
- 6.35 mm headphone jack (front)
- Front L/R pre-out (analog RCA, shared with Zone 2 line-out)
- Zone 2 line-level output (analog RCA)
- 2 subwoofer pre-outs
- 4 transparent gold speaker-posts (Speaker A+B)
- Bi-directional Ethernet LAN terminal for IP control
- 1 front USB input (no power on standby) for audio playback
- 1 rear USB input (5 V/1 A including in Network Standby)
- IR (infrared) input/output for remote-control extenders
- RI (Remote Interactive) terminal for integrated control
- AC socket for detachable IEC power cord
ADVANCED FEATURES
- Bi-wire compatible loudspeakers for pristine mids and highs

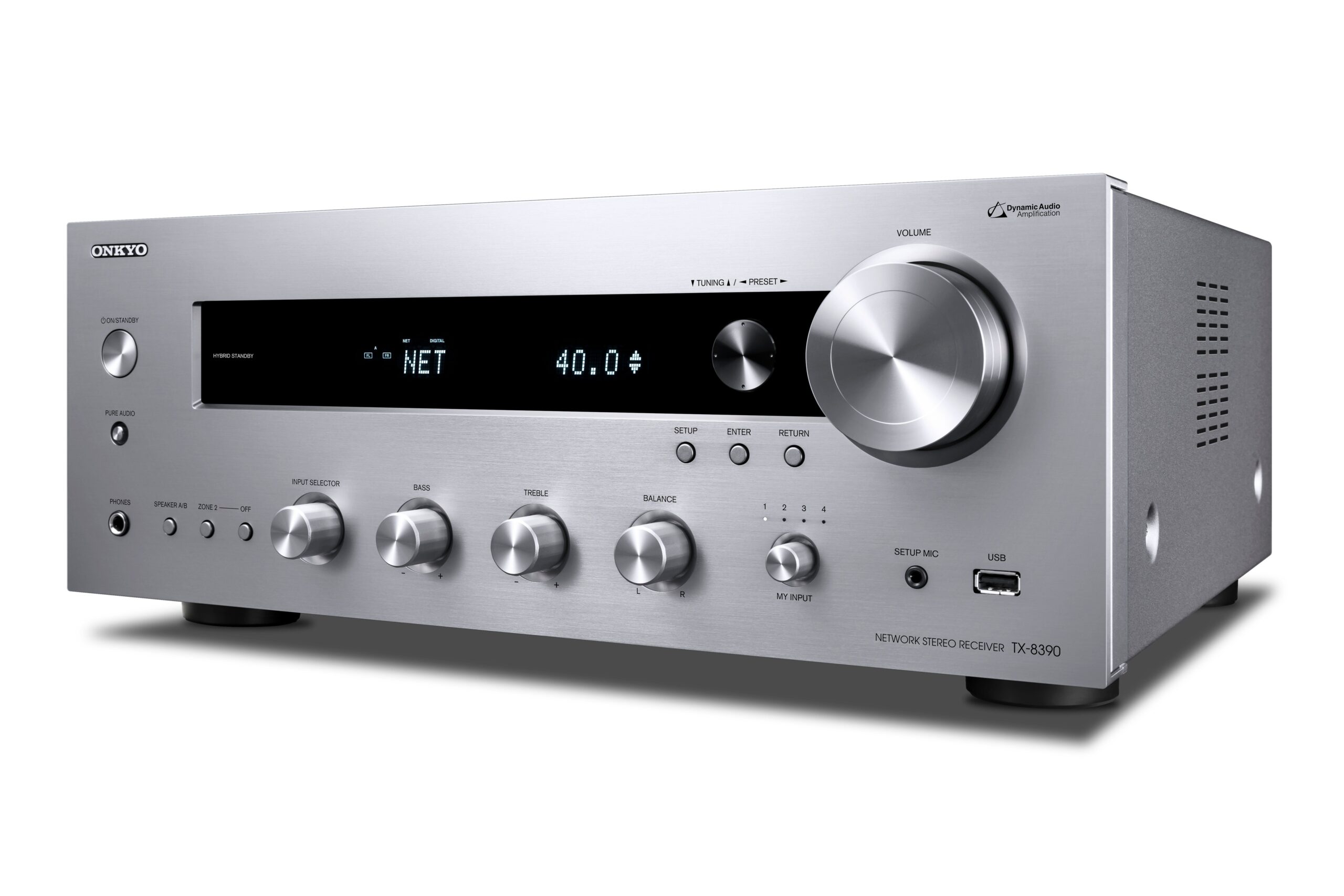

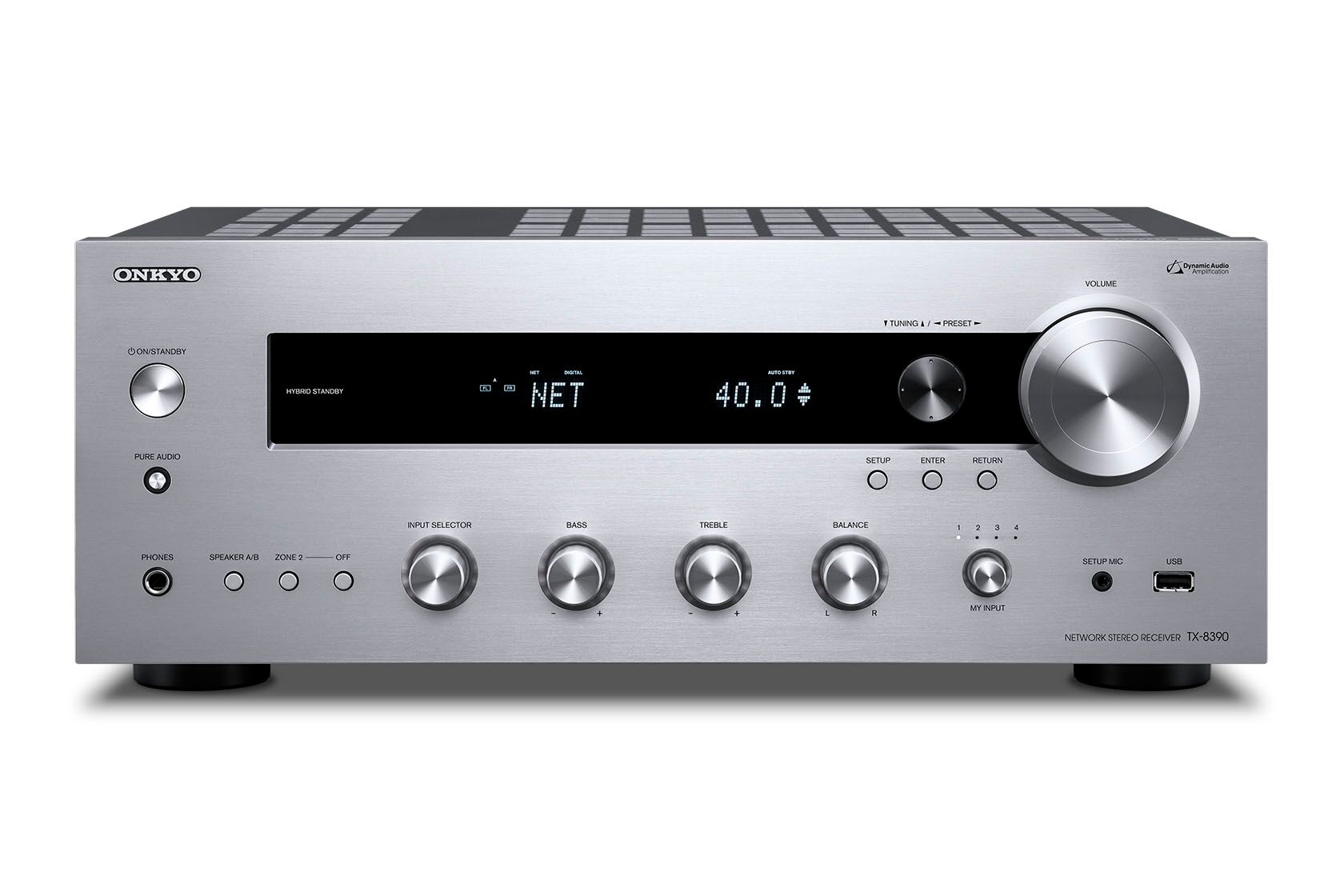

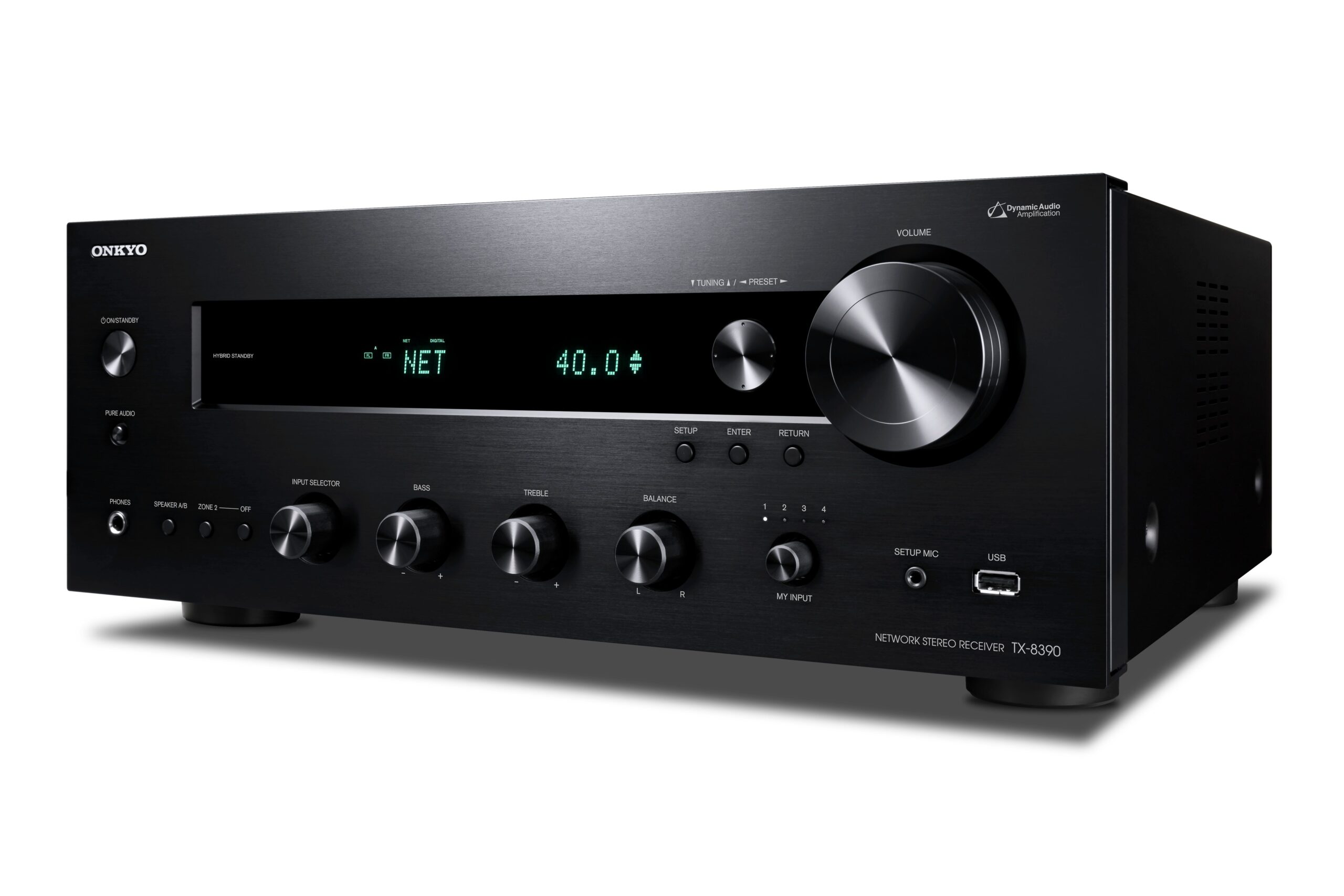

- 5 mm-thick extruded aluminum front panel
- Aluminum volume and tone controls, balance, My Input, input selector, and cursor key
- My Input selector saves four input presets with listening mode, tone/balance, and volume
- FM/RDS and DAB+ tuners with 40-station memory presets
- GUI with OSD includes transparent A/V input/output information overlay to check playback conditions without program interruption
- Sub/Zone 2 HDMI output with modes supporting simultaneous distribution of the same or different video sources*11
- A/B or A+B Speaker Drive plays an audio source through either or both pairs of connected speakers (8–16 Ω speakers required for A+B drive)
- AccuEQ Stereo with Subwoofer EQ
- Bluetooth® Ver. 4.2 wireless technology (SBC/AAC)
- Advanced Music Optimizer improves playback quality of compressed audio files
- Zone 2 line-out with Zone 2 DAC connects compatible audio systems for synced/independent D/A playback (including HDMI/SPDIF)*12 in Main and Zone 2
- A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
- IP web browser control, support for AMX® and Control4® home automation
- 3-Mode display dimmer (Normal/Dim/Dimmer)

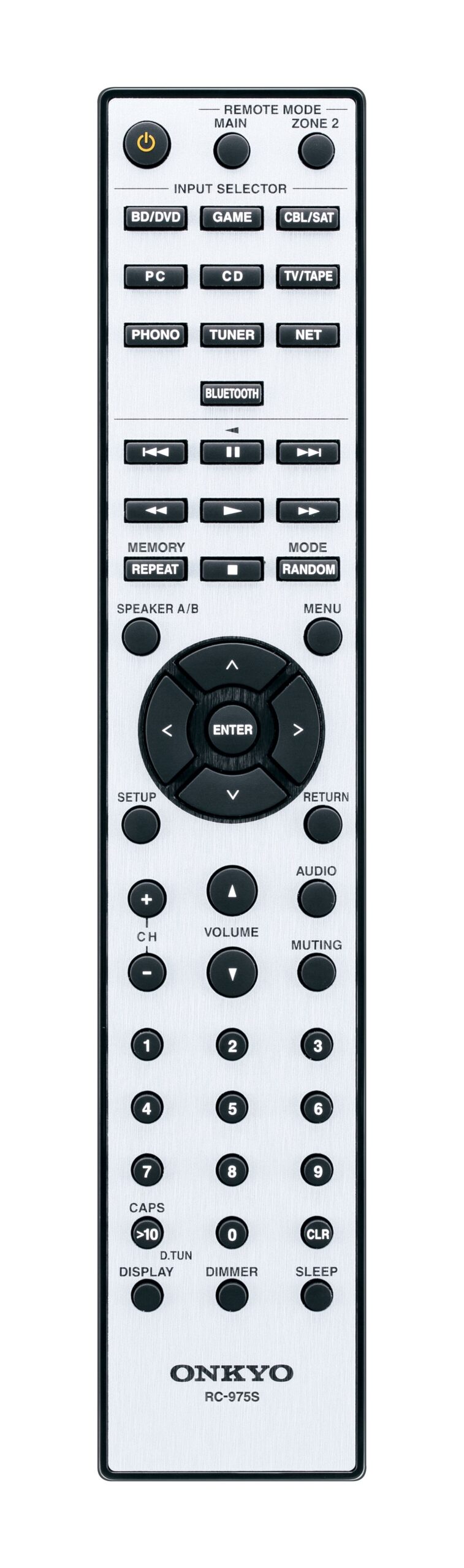

- Chic new slimline Simple Remote Control
