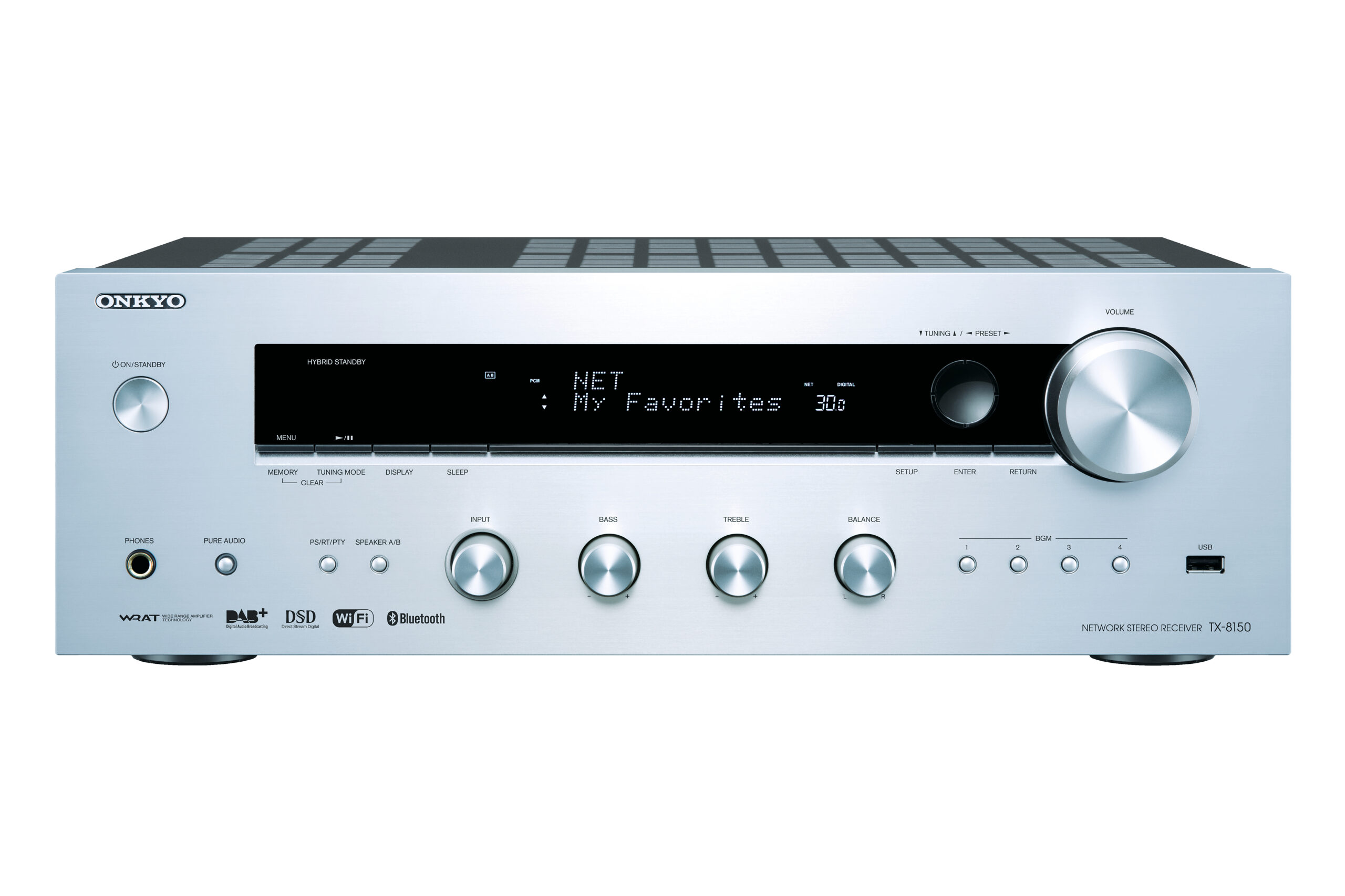

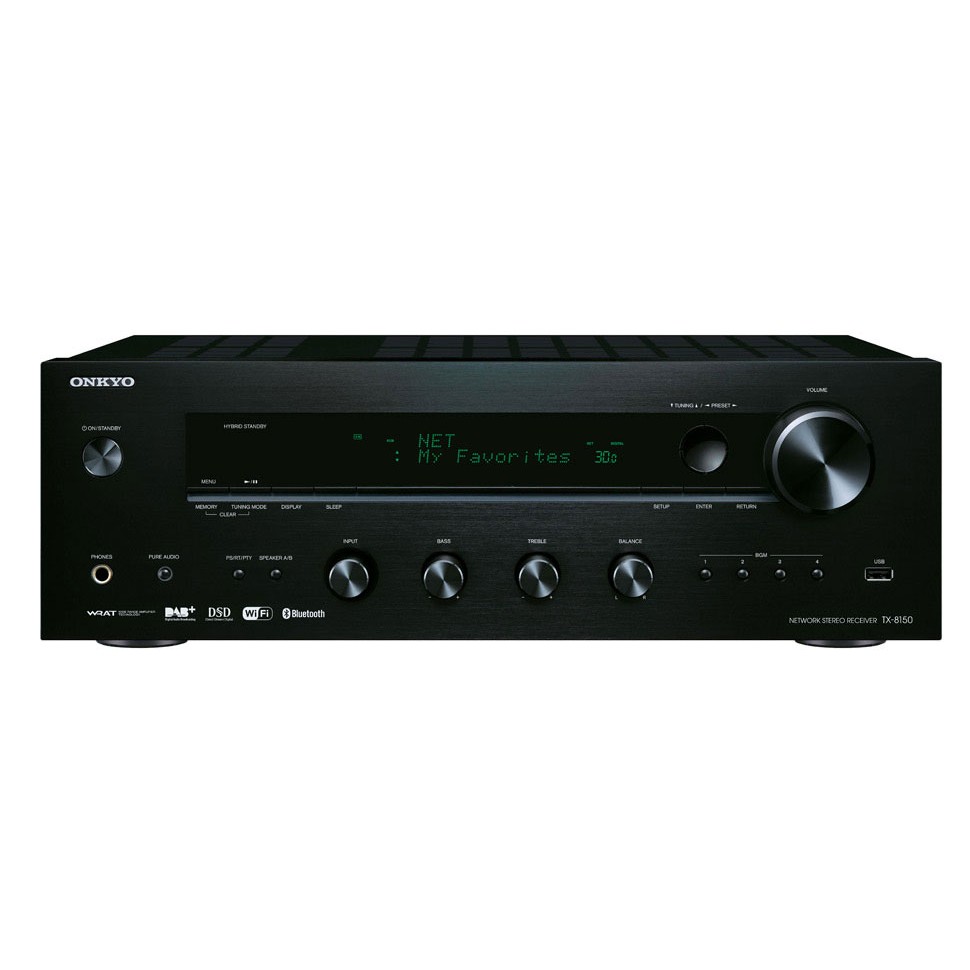

Network Stereo Receiver
Magnificent Sound Meets Ultimate Versatility

With 135 W/Ch of pure high-current analog power courtesy of a discrete low-impedance amplification system, your speakers are driven with depth and clarity no matter what audio source you select. And there are so many options: TV sound via digital inputs, music streaming from Spotify over Wi-Fi®, iTunes via AirPlay, MP3s from USB drives, audio from mobile apps via Bluetooth technology, and both FM and DAB+ radio. There’s also a phono equalizer for your turntable and other players can be connected using the four digital and six analog inputs. BGM Preset stores four of your best FM, DAB+, and internet radio stations, so entertainment is only a button push away. Don’t settle for second best: with almost 70 years’ experience building premium Hi-Fi gear, nothing else performs like an Onkyo.

Key Features
Hi-Current Non-Phase-Shift Amplification
Hi-Grade 384 kHz/32-bit DAC
Rediscover the Magic of Vinyl
Bluetooth Audio, Wi-Fi®, and AirPlay with Spotify
Ready for Hi-Res Audio.

Technical Details

Features
HIGHLIGHTS
135 W per Channel
Built-in Wi-Fi® for Wireless Audio
Bluetooth Audio Support for Wireless Audio Playback
Spotify Connect and AirPlay
Phono Input
Hi-Current Amp Design
384 kHz/32-bit Hi-Grade DAC
4 Quick-Access BGM Presets
AMPLIFIER AND CONNECTION FEATURES

135 W/Ch (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC);
140 W/Ch (6 Ω, 1 kHz, 2 Channels Driven, JEITA)
Non-Phase-Shift Amp Design for Realistic Sound Imaging
Discrete Amplifier Design with Massive EI Transformer
Two Custom-Made 8,200 µF Hi-Current Capacitors
AKM AK4452 384 kHz/32-bit Hi-Grade DAC
Plays Music from Mass-Storage-Class USB Memory Devices
Supports Onkyo Remote App for Control of Receiver via iPod touch/iPhone and Android™ Devices*1
Plays Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, and LPCM)
Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Spotify, and Deezer)*2
Certified with Windows® 8 and DLNA Version 1.5
Pure Audio Mode
Direct Mode

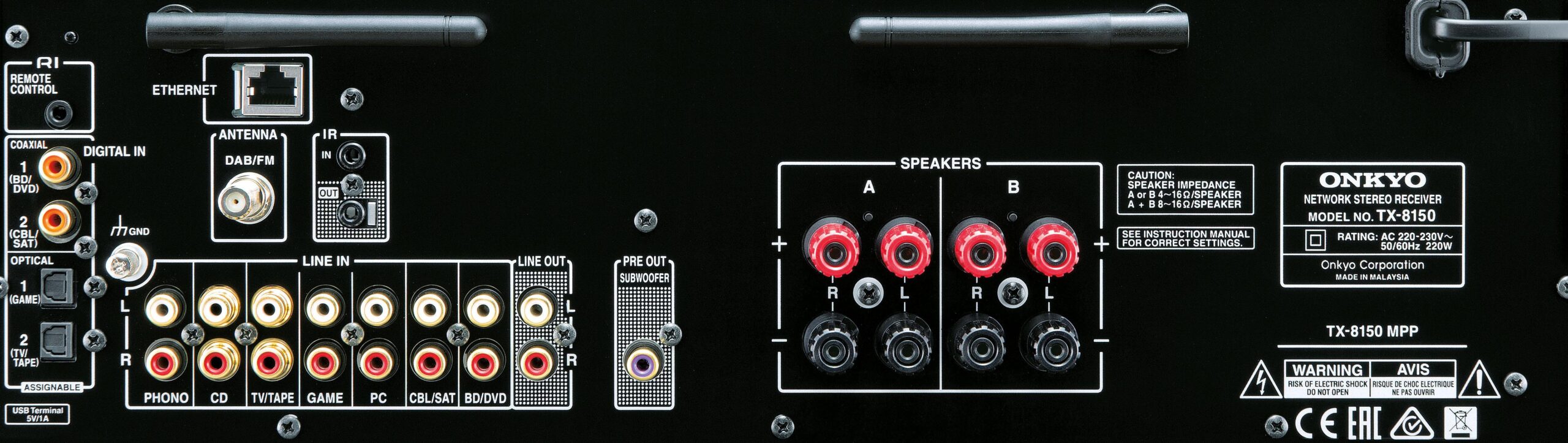

4 Digital Audio Inputs (2 Optical and 2 Coaxial)
6 Analog Audio Inputs (Excluding Phono Input) and 1 Output
MM Phono Input
Subwoofer Pre Out
Speaker A/B Drive
IR Input and Output
Gold-Plated Headphone Jack
*1 Compatible models: iPod touch 3rd generation or later, iPhone 3GS or later running iOS 4.2 or later; Android 2.1 or later. *2 Availability of services depends on region.

TUNER FEATURES
FM/DAB/DAB+ Tuner with 40 Station Presets
Preset Station Naming (Up to 10 Characters)
OTHER FEATURES

Anti-Vibration Oval Chassis
Gold-Plated Audio Terminals
Banana Plug-Compatible Speaker Posts
Front USB Port for WAV 96 kHz, DSD 2.8 MHz, and MP3 Playback
Auto Power On via Optical When Signal is Detected
Independent Bass, Treble, and Balance Controls
Network Standby Capability
3-Mode Display Dimmer (Normal/Dim/Dimmer)
Sleep Timer
Battery-free Memory Back-up
Compatible with RI (Remote Interactive) Dock for iPod/iPhone
Full-Function RI Remote Control.
