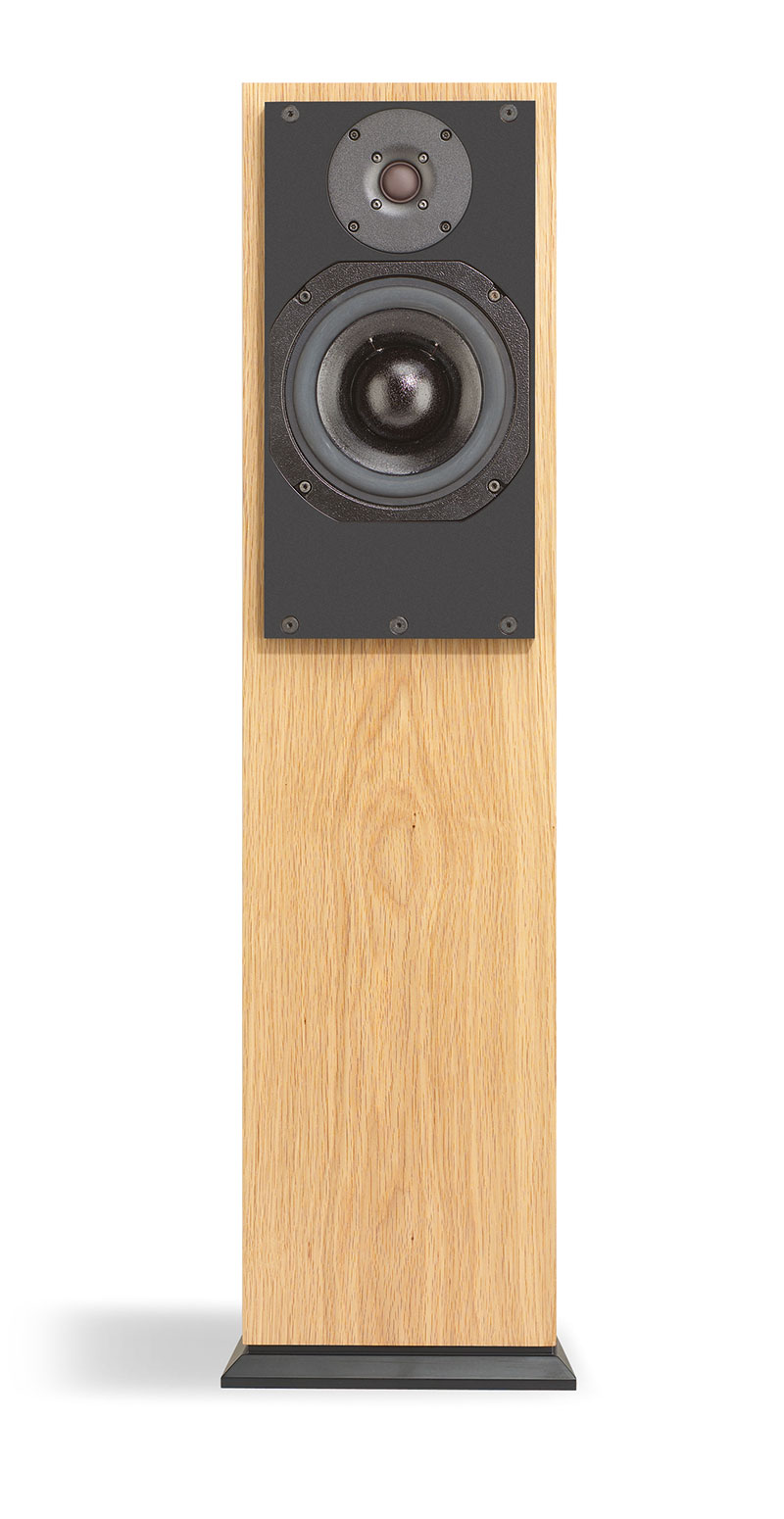

SCM20PSLT

Finns i färgerna: Fanér Körsbär, Svart Ask, Ek, Valnöt. Lackerad Satin Svart, Satin Vit.

Denna modell finns även som Aktiv.

Overview

• Full SL Spec Bass driver with 75mm integral soft dome
• 9kg optimised motor assembly
• In-house, hand wound precision flat wire coil
• Wide, even dispersion for pin-point imaging
• 250watt Class AB bi-amp pack (active version)
• Active filters and overload protection (active version)
• 6 year warranty

Passive

Drivers: HF 25mm Neodymium, Mid/LF 150mm
Frequency Response (-6dB): 60Hz–20kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 108dB
Crossover Frequency: 2.8kHz
Connectors: Bi-wire posts
Cabinet Dimensions (HxWxD): 1023x239x355mm

Active

Drivers: HF 25mm Neodymium, Mid/LF 150mm
Frequency Response (±2dB): 80Hz–17kHz
Frequency Response (±6dB): 60Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 108dB
Crossover Frequency: 2.8kHz
Connectors: Male XLR
Filters: Active & Passive – 2nd Order Linkwitz-Riley
Amplifier Output: 200w LF, 50w HF
Cabinet Dimensions (HxWxD): 1023x239x365mm
Weight: 40kg
