PRIS: med media kort

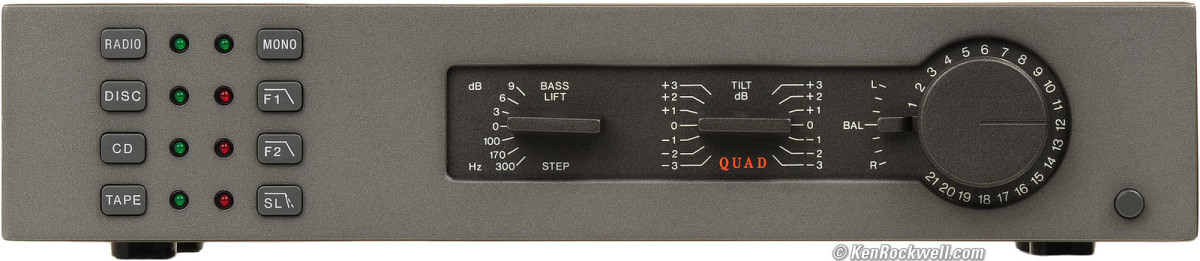

Quad 34 förförstärkare

Denna förförstärkare från Quad  var den man köpte till Quad 606 slutsteget om pengarna inte räckte till att köpa mod Quad 44 som var den optimala förförstärkaren från Quad vid den tidpunkten.

Tyvärr så har vi ingen 44 ,utan får nöja oss med 34.



The Quad 34 provides the serious music listener with everything necessary for the full enjoyment of music from radio, disc, tape and compact disc and continues a process of evolution which began more than thirty years ago with the original Quad control unit.

Inputs are selected by pushbutton controlled solid state switches and all inputs are fully isolated so that one can switch from one to the other without turning down the volume control or switching off unwanted sources.

Filters, selected by pushbutton, provide optimum characteristics to remove distortions inherent in the record playing system and leave more of the music.

The Tilt control changes the programme balance to compensate for the difference between the reverberation of the actual listening room and the recording engineers concepts.

It is a highly sophisticated eight pole filter that is smooth in operation with no abrupt changes of response and no unwanted colouration.

The Bass control fulfils one of two functions; as an equaliser for use with small loudspeakers in the lift mode when it provides smooth progressive bass boost to compensate for the low frequency roll-off of small enclosures, and as correction for low frequency exaggeration due to floor or corner placement, in the step mode.

In short, the Quad 34 provides correct input matching and compensation for programme and room effects with excellent ergonomics, everything necessary to obtain enjoyment with the widest possible variety of programme.

Specifications
Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.05%

Input sensitivity: 3mV (MM), 100mV (line)

Signal to noise ratio: 75dB (MM), 88dB (line)

Output: 100mV (line), 0.5V (Pre out)

Dimensions: 321 x 64 x 207mm

Weight: 3.2kg.
