PRIS:600 kr med media kort

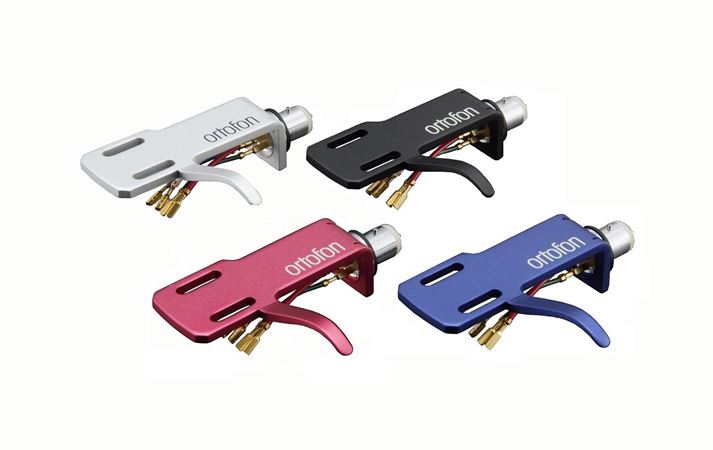

Ortofon SH-4 Headshell

Ortofon SH-4 headshells are high-quality, solid headshells for variety of applications

The SH-4 headshell has an ergonomic design with a long finger that is easy to pick-up. The big finger grip and shorter construction makes movement and placement of the headshell easy and visible.
The wire terminals on the rear side are also gold plated for better signal transmission.

Dimensions and weight:
• Weight: 9.4g
• Shell length: 51.5mm
• Finger Length: 27mm

All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Ortofon SH-4 headshell PINs and Ortofon cartridges’ terminal PINs diameter is 1.2 mm. Leadwires supplied fit all right on the cartridges’ terminal PINs.
