PRIS:11 000 kr med media kort

Vincent KHV 200 Hörlursförstärkare

Hybrid Headphone Amplifie

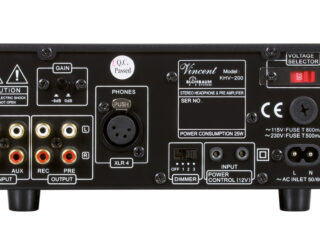

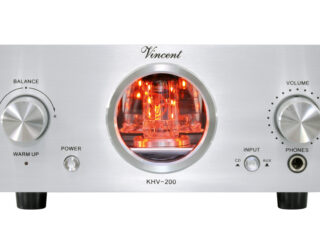

To get the best sound quality of your headphones, an external headphone amplifier is needed. In collaboration with degreed engineer Frank Blöhbau we developed the KHV-200. It was designed that almost every headphone could be driven with the best sound quality. Beside a 6.3mm headphone socket it also has an 4 pin XLR socket for the connection of high end headphones.

Technical Specifications

  • Frequency range: 20 Hz – 20 kHz (± 0,1 dB)
  • Harmonic dirtortion: < 0,01% (1 kHz; 0,1 W; 32 Ohm)
  • Signal-Noise Ratio: > 95 dB
  • Input Impedance: 33 kOhm
  • Max. Input Voltage: 4 Veff
  • Nominal Amplification Headphone Out: Low Gain: -2,66 dB, High Gain: 13,64 dB
  • Nominal Amplification Preamp Out: Low Gain: -11,06 dB
  • High Gain: 5,13 dB
  • Nominal Amplification Record Out: 0 dB, Inputs: 2 x Stereo RCA
  • Outputs: 1 x Stereo RCA (PRE OUT), 1 x Stereo RCA (REC OUT), 1 x Headphone 6,3 mm Stereo jack, 1 x Headphene XLR 4-pin Stereo
  • Power Supply: 230 V/50 Hz und 115 V/50/60 Hz (switchable)
  • Dimensions (W x H x D): 210 x 85 x 277 mm
  • Weight: 3,6 kg
  • Colors: Black/Silver
  • Tubes: 2 x E180F/6SCH9P, 1 x ECC82
