PRIS:50 000 kr med media kort

Rotel RAP 1580 MKII Receiver

The RAP-1580MKII is the ideal home theater solution delivering uncompromised audio and video performance supporting 7.1.4 Dolby Atmos and DTS:X processing with 7 channels of 140 Watts of Class AB output power into 4 ohm loads and licensed for Dirac Live room correction technology ensuring optimal performance in any setting.

The array of 6 audiophile grade Wolfson 24-bit/192kHz Digital-to-Analog converters with hand selection of all critical audio components deliver extraordinary detail and resolution with an extremely low noise floor.

Dirac Live LE and included USB measurement microphone delivers unrivaled room correction with improved staging, better clarity and deeper, tighter bass ensuring the RAP-1580MKII delivers optimal performance in any setting.

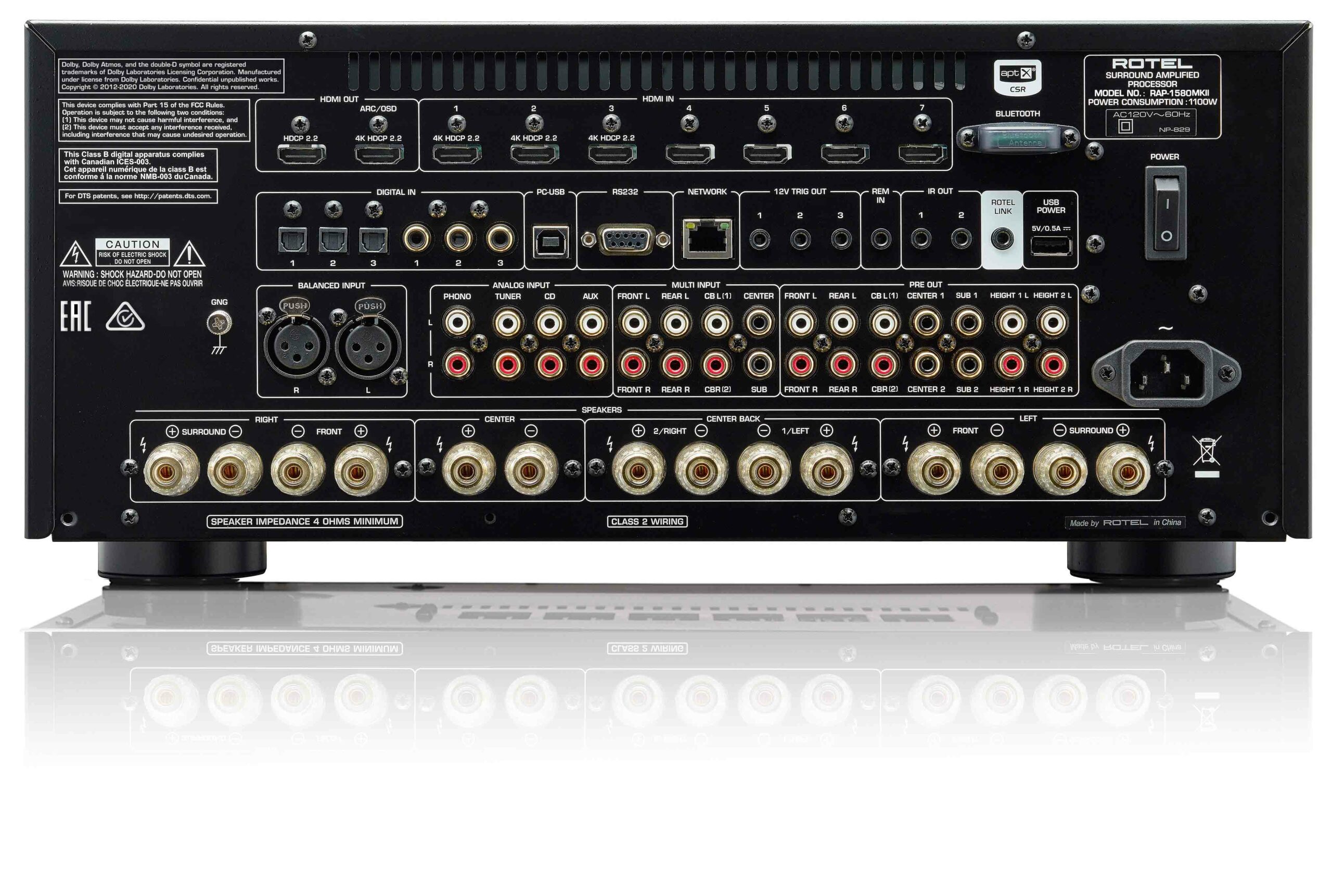

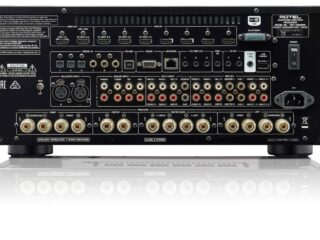

The 8 x 2 HDMI connections support 4K video with HDCP 2.2 HDR supported on 3 of these inputs and both outputs.  The RAP-1580MKII includes a vast array of audio inputs including analog, digital, PC-USB with 24b/192k, apt-X wireless Bluetooth, XLR, Moving Magnet Phono stage and front panel iOS USB.

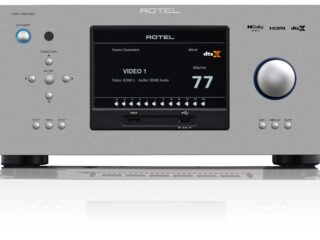

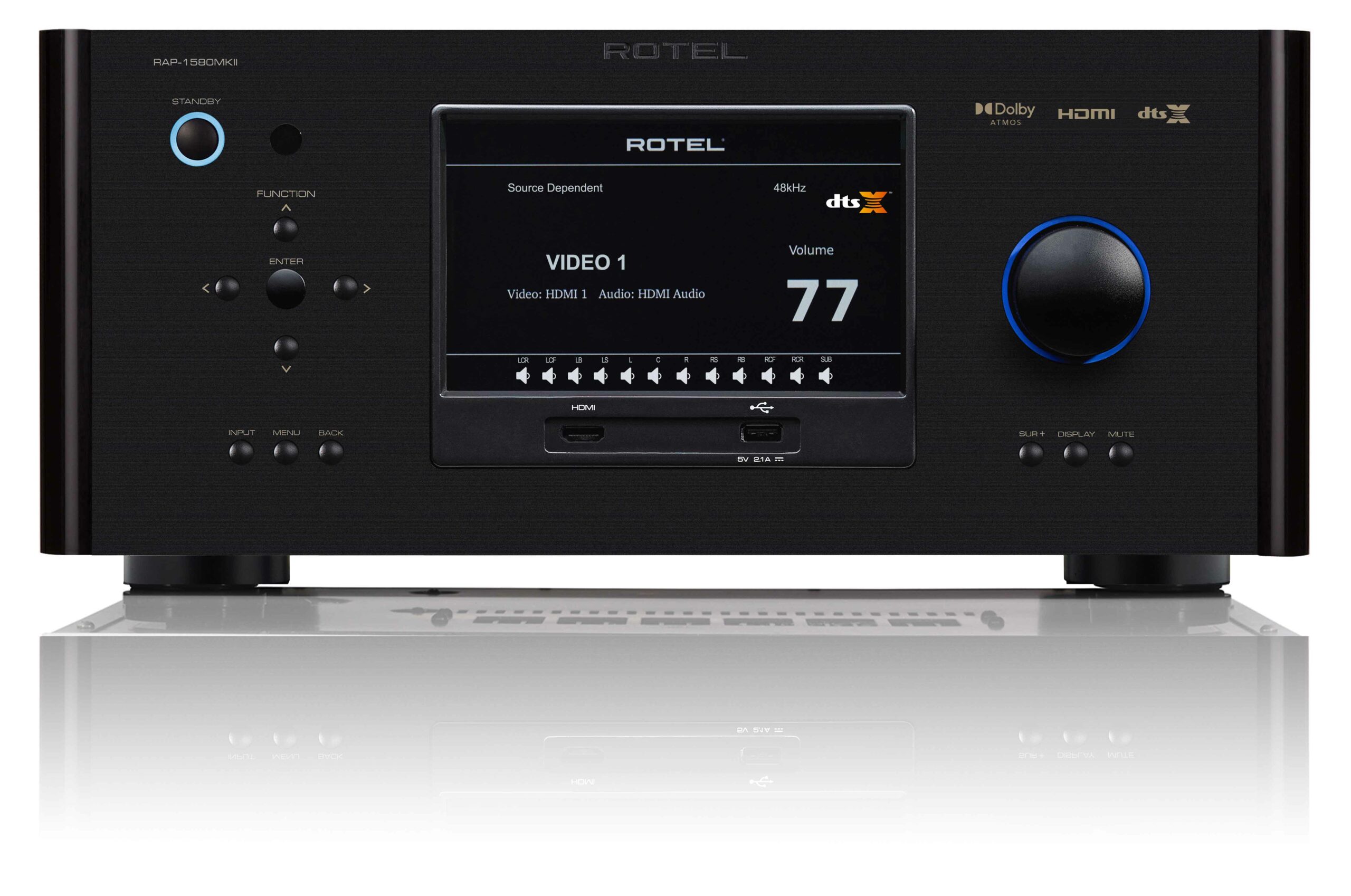

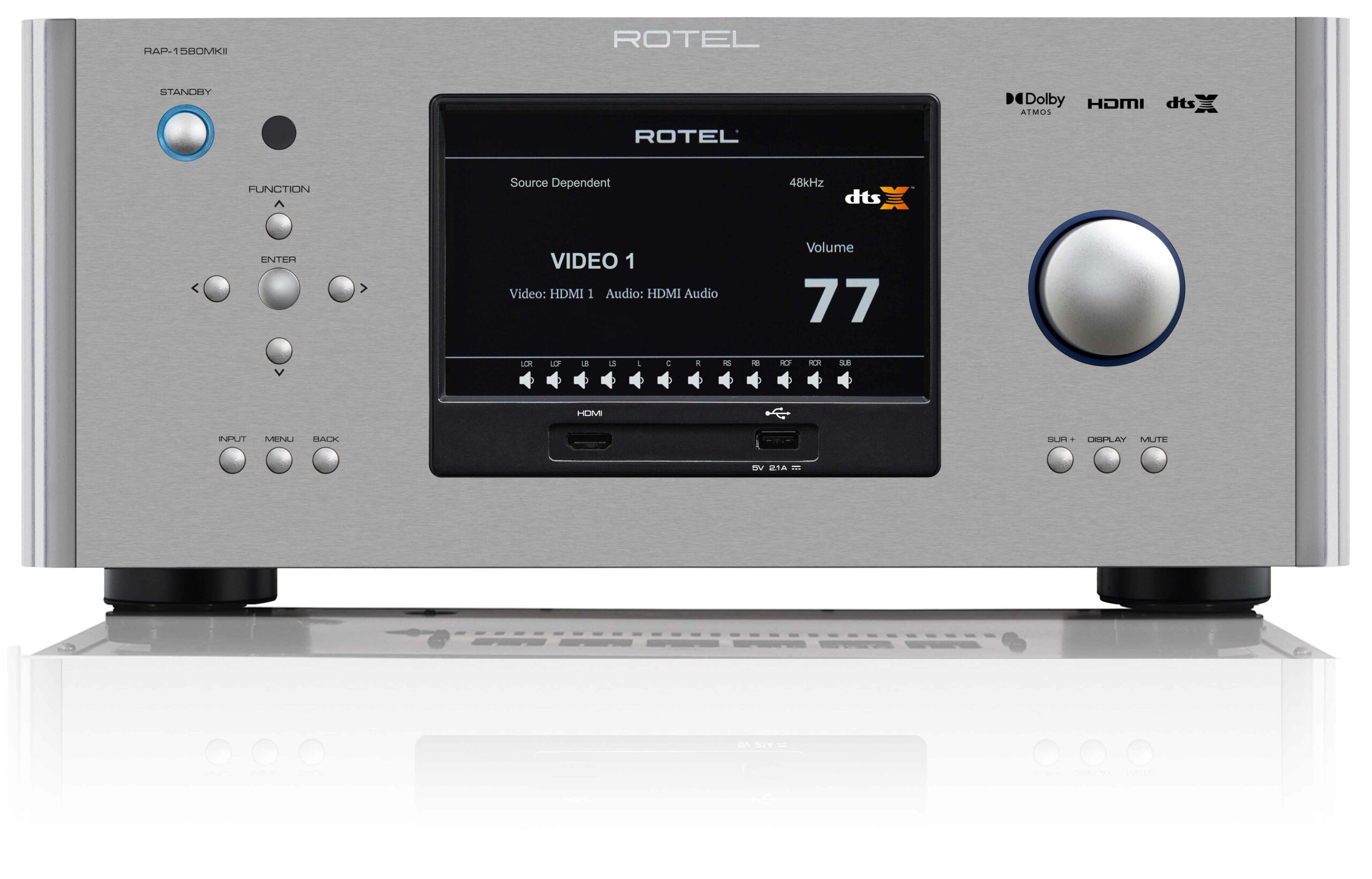

A front panel graphic display provides easy adjustments of all configuration parameters.  RS232 and Ethernet connections ensures connectivity with all popular control systems.

Rotel’s RAP-1580MKII is simple to operate, powerful, flexible, and refined welcomed in any home theater setting.

DIMENSIONS (W × H × D)
431 × 192 × 470mm
17″ × 7.55″ × 18.5″
FRONT PANEL HEIGHT
4U / 177mm (7″)
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
1100W
STANDBY POWER CONSUMPTION
0.5W
NET WEIGHT
22.8kg (50.27lbs.)
BTU RATING
2800 BTU/h
CONTINUOUS POWER OUTPUT
200W/Ch (2 channels driven, 4Ω)
140W/Ch (7 channels driven, 4Ω)
135W/Ch (2 channels driven, 8Ω)
100W/Ch (7 channels driven, 8Ω)
TOTAL HARMONIC DISTORTION (THD)
<0.05%
FREQUENCY RESPONSE
Phono Input: 20Hz – 20kHz, ±1dB
Analog Bypass: 10Hz – 100kHz, ±1dB
Digital Inputs: 20Hz – 20kHz, ±0.5dB
S/N RATIO (IHF “A” Weighted)
Analog Bypass: 100dB
Digital Inputs: 96dB
