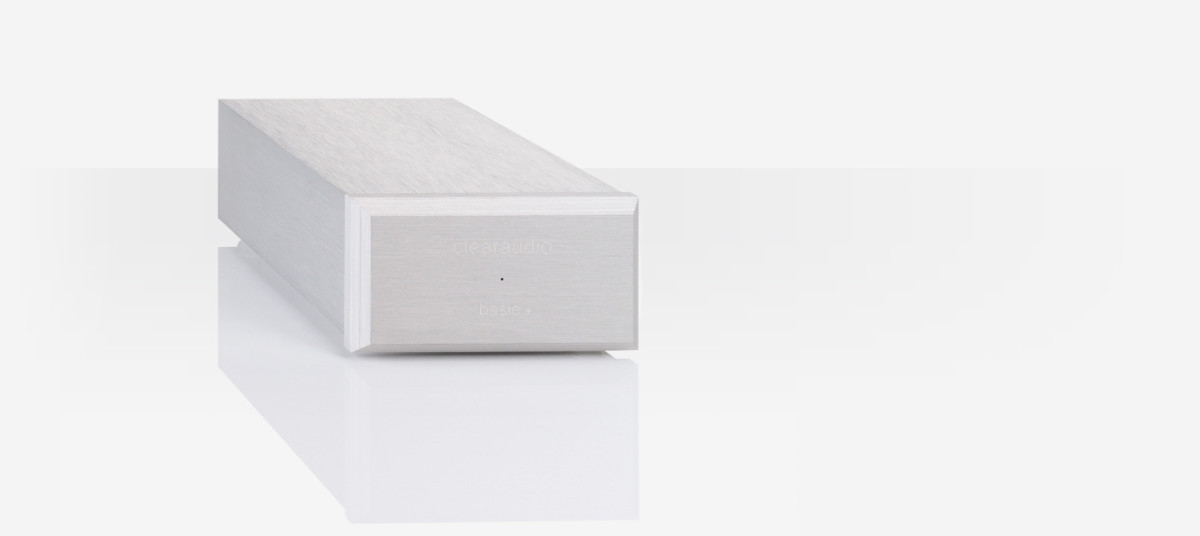

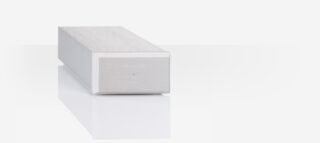

MM & MC RIAA steg i solid Aluminium från Clearaudio.
-MM & MC RIAA steg i solid Aluminium.
Simple to use yet full of features, this unit matches moving magnet as well as moving coil cartridges via a switch located on the bottom side.
It’s advanced circuitry also automatically matches the impedance of the cartridge used. A winner and an unbeatable reference unit in its class.
Mode: MM / MC
Amplification @ 1 kHz: 60dB (MC) 40dB (MM)
Input impedance: 800 Ohm/pF (MC) 47 kOhm / 270 pF (MM) MM / MC input:
Switchable RIAA (75µs/318µs/3180µs): Yes
RIAA accuracy: ± 0.2 dB Distortion: 0.004 %
Signal to noise ratio: > 65 dB (MC)
Crosstalk: > 90 dB
Frequency: 10Hz – 100kHz
Max. output voltage: 11 V (1 kHz)
Operation voltage: ± 25 V DC
Output connections: Unbalanced RCA
Weight: 1.5 kg Dimensions (W/D/H in inches): 4.0 x 6.5 x 2.4 Dimensions (W/D/H in mm): 102 x 165 x 60
