Gold-W15-Piano-Ebony-on-white
PRIS:24 900 kr med media kort

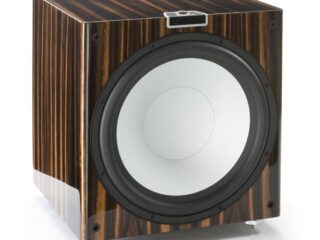

Monitor Audio Gold W 15

OBS ! denna högtalare kan du köpa i Ebony trä då kostar den 29900:-



It may deliver taut gut-churning bass all the way down to a seismic 18Hz, but the Gold W15 is also an intelligent design, featuring an advanced automatic room correction system called LEO™ (Listening Environment Optimizer). LEO simply and automatically eliminates the detrimental bass boost of boundaries and corners through the use of a microphone and test tones. The Gold W15’s sealed enclosure and front-firing driver make it easy to install, and calibration from the front-mounted controls and dimmable LED display is simple, even from a distant position. It’s equipped with a 12V trigger and remote control with four user EQ pre-sets.

Ultra long throw 15” C-CAM® (Ceramic-Coated Aluminium/Magnesium) driver featuring triple suspension
Large black anodized 3” voice coil and double stack motor system provides high power handling and low distortion
Carefully optimized motor system design to reduce heat and improve efficiency
Powerful 650Watt DSP Controlled amplifier (D2 Audio™)
Advanced full bridge switch mode power supply (SMPSU) Capable of delivering over 1200 watt peak power
12V trigger – provides switching control from A.V amp or processor
Rigid, 25mm (1”) thick M.D.F construct
Heavy radial cabinet bracing with separate amplifier partition
Front mounted control panel for easy access and viewing
The LEO™ system provides Automatic Room Mode Correction (ARMC) for easy set up and perfect sound quality
Remote control with 4 user EQ settings
Selected real wood veneer or high gloss lacquer finishes.

System Format
Sealed Cabinet. 25mm M.D.F construction with internal bracing. Sealed amplifier compartment

Low Frequency Limit
18 Hz

Upper Frequency Limit
40 – 120 Hz Variable

Low Pass Filter Alignment
Active 4th order 24dB/octave (6/12/18/24 dB user adjustable)

Amplifier Power Output
650 watts Continuous. 1200 watts Peak

Amplifier Classification
D2AudioTM DSP controlled, Class-D amplifier system. High current switch mode power supply (SMPSU)

Equalisation
4 Settings (Off/Music/Movie/Impact)

Phase Control
0-90-180-270 degrees

Auto Sensing Input Level Requirements
Line Level > 2mV. Standby after 10 minutes if no signal sensed

Digital Volume Level
-60 to +10dB in 1dB increments

Drive Unit Complement
1 x 15” C-CAM® sub-woofer driver featuring triple suspension
3” long throw voice coil

12V Trigger Input
3.5mm mono jack socket

Connections
Stereo RCA in/out
LFE in/out
12V Trigger in (3.5mm mono jack)
LEO* – 3.5mm Microphone input jack (microphone supplied)

Input Impedance
20 K Ohms

Dimensions (HxWxD)
430 x 400 x 400 mm (1615/16 x 153/4 x 153/4 Inches)

Grille Depth
28 mm (11/8 Inches)

Weight (unpacked)
35.3kg (77lb 10oz)

Mains Input Voltage
100 – 120 Vac / 220 – 240 Vac 50/60 Hz (Factory preset)

Electrical Certifications
CE/CB/ETL/Fcc/ErP (Energy saving compliant)

Power Consumption
Maximum 1000W. Standby < 0.5W (ErP Compliance)

Fuse Type
20mm UL/VDE (Value is region specific)

IR Remote Control Code
NEC SH6122
