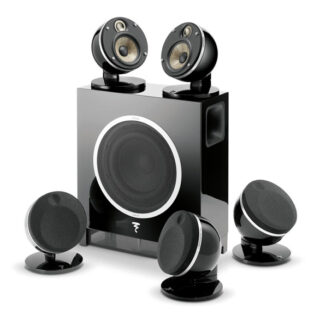

DOME FLAX 5.1 Air

Dôme Flax is a high-end system made in France, characterized by its miniature and « high-tech » design. Thanks to its Flax cone, made of linen, this 5.1 system gets a major improvement in definition and intelligibility of dialogues as well as a larger spacialization thanks to a better linearity of the frequency response. A true return to nature for your films!

Room size: 320ft² to 430ft²

The Dôme Flax system is associated with the wireless subwoofer Sub Air for a 5.1 configuration. Free from any cables, Sub Air offers an intense and deep sound and perfectly fits into all kinds of spaces with its flat and compact design.

Dôme Flax

• High-fidelity speaker, patented Flax technology
• Focal sound with advanced technologies
• Integrated speaker: in wall, in ceiling, on furniture or standing
• High-gloss lacquered Aluminium body
• Made in France

Specifications

Type 2-way compact sealed speaker
Drivers 4″ (10cm) Flax mid-bass 1″ (25mm) Al/Mg inverted dome tweeter Frequency response (±3dB) 80Hz – 28kHz
Low frequency point (-6dB) 72Hz
Sensitivity (2.83V/1m) 88dB
Nominale impedance 8 Ohms
Minimum impedance 4 Ohms
Crossover frequency 2500Hz
Recommended amplifier power 25 – 100W
Dimensions (HxWxD) 63/4×511/16×55/8″ (172x144x143mm)
Net weight 1,9 kg

Sub Air subwoofer

• Install it wherever you want thanks to the wireless connection (wireless transmitter included)
• High-gloss lacquered “Piano” finish

Specifications

Speaker driver (diameter) 8″ (21cm)
Bass cutoff frequency (-6dB) 35Hz
Frequency response (+/- 3dB) 40Hz-200Hz
Crossover cutoff frequency variable 50 Hz – 200 Hz
Input panel Left Right / LFE
Continuous power output 110 W
Peak power 150 W
Phase adjustment 0 – 180° switch
Power functions ON Auto (1 W) OFF (0,5 W)
Dimensions (HxWxD) 16.1″x14.2″x6.3″ (410mmx360mmx160mm)
Weight 17 lbs (7,65 Kg)

Wireless Connection

Range in Meter 15 meters (in a room)
Sound Sampling 16 bits
Sampling Frequency 44,1kHz
Coding delay (latency) 13ms
Radio transmission powers or sensitivity 0dBm
Radio transmission frequency band 2,4Ghz ISM band
