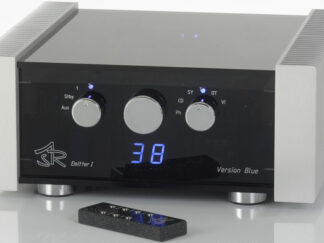

Integrerad förstärkare, samma förstärkare som Emitter I med följande tillval: Version Blue finish i transparent acryl, 1 x balanserad ingång, kondensator board 486.4400uf.

The power supply unit is equipped with two powerful PM (Philbert-Mantelschnitt) transformers with a smaller PM transformer for Standby operation. The two power transformers are switched ON softly with 5 high power relays in the energy saving mode. If required, they can be switched via a current limiter into normal operation mode. In the power supply unit, 8 different voltages are generated. Every voltage is rectified individually and pre-buffered. These voltages are used to supply the input amplifier, driver, output stage as well as the control circuit separately. The Emitter I is connected to the power supply unit with a 2 meter long double shielded cable.
2 x 140 Watts into 8 ohms
Higher buffering capacity of 486.440uF
1 x XLR balanced input
Specially designed Metal Feet
Double monaural construction in single casing, mirror symmetrical design
MOSFET Class A/B technology
Separate power unit with energy management control
6 relay driven high level inputs
1 recording output
Slot for phone preamplifier or balanced input
Volume control with relays in 1dB steps
Protection circuits against overload, override, short circuit, excess temperature and DC voltage
Signal to noise ratio on high level input: 88 dB
Rise time lower than 1 µs
Distortion lower than 0.01%
Damping factor: more then 600
Dimensions of the control unit: 42 x 42 x 16 cm
Dimensions of the power unit: 46 x 32 x 16 cm
Weight of the amplifier: 19 kg
Weight of the power unit: 31 kg
